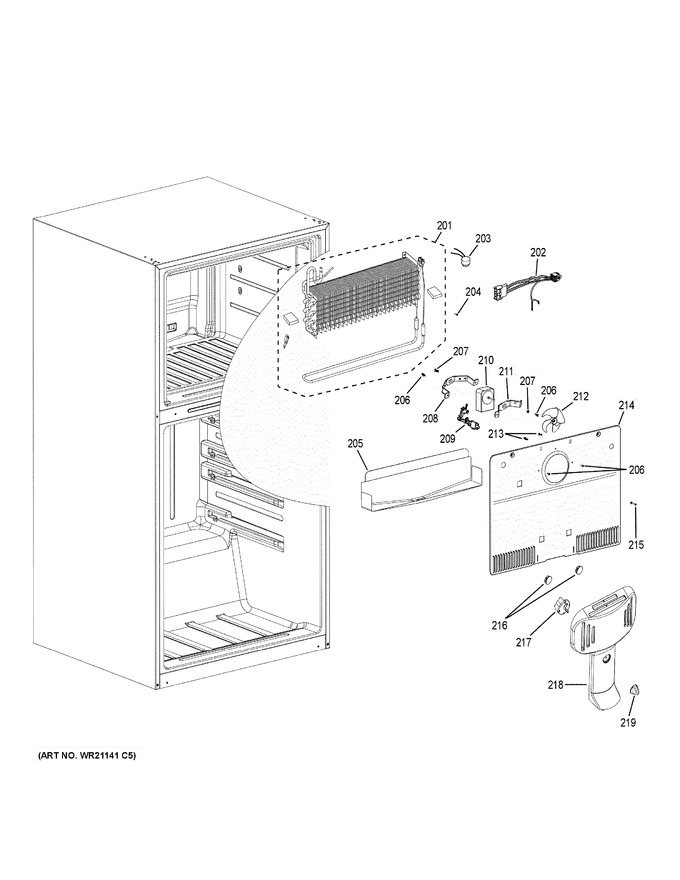

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
201	WR87X27295		Evap And Heater Asm				$ 86.46
202	WR55X27420		Icemaker Defrost Harness				$ 67.13
203	WR09X27353		Thermostat Defrost				$ 45.50
204	WR01X27329		Screw #8 X 5/8"		Appelez-nous	-
205	WR14X27293		Defrost Drain Tray		Appelez-nous	-
206	WR01X27327		Screw #8-32 X 3/8"		Appelez-nous	-
207	WR01X27302		Ground Screw Star Washer		Appelez-nous	-
208	WR02X27278		Evaporator Fan Rear Bracket		Appelez-nous	-
209	WR55X27310		Evaporator Fan Motor Jumper		Appelez-nous	-
210	WR60X27314		Evaporator Fan Motor A/c				$ 182.64
211	WR02X27926		Evaporator Fan Inner Bracket		Appelez-nous	-
212	WR60X27275		Evaporator Fan Blade				$ 50.46
213	WR01X27328		Screw #8 X 3/8"		Appelez-nous	-
214	WR14X29187		Evaporator Cover		Appelez-nous	-
215	WR01X27296		Evaporator Cover Screw & Washer		Appelez-nous	-
216	WR01X27320		Evaporator Cover Plug Button		Appelez-nous	-
217	WR02X27610		Im Receptacle Cover		Appelez-nous	-
218	WR14X27927		Freezer Air Tower		Appelez-nous	-
219	WR02X27311		Knob Air Tower				$ 18.55
