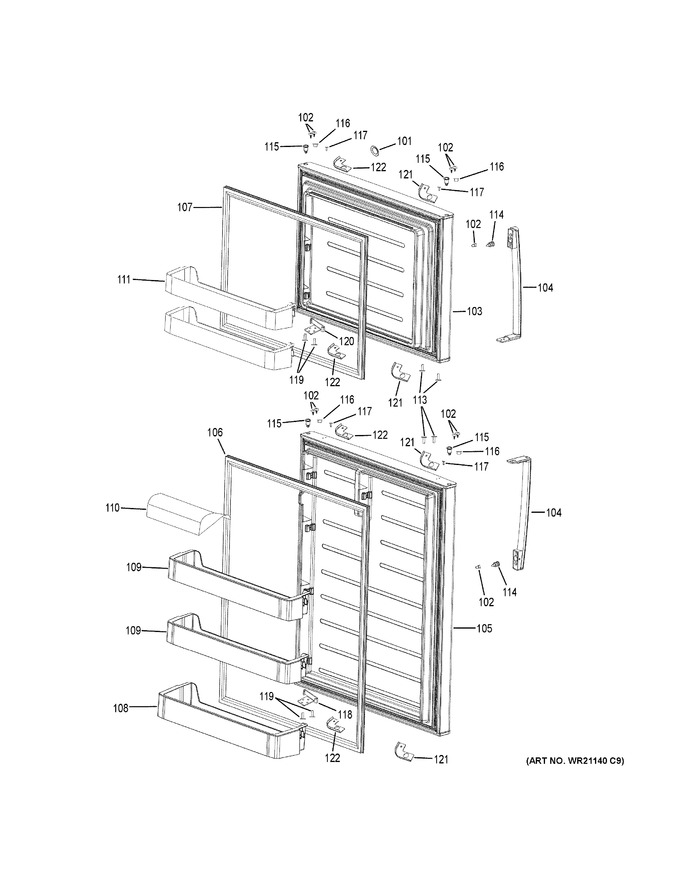

Doors


Freezer Section


Fresh Food Section


Machine Compartment


Shelves & Drawers


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WR02X27273		Badge Asm Haier		Appelez-nous	-
102	WR02X27445		Door Screw Plug Black		Appelez-nous	-
103	WR78X27325		Ps Door Fz Black		Appelez-nous	-
104	WR12X27379		Handle Door Bb				$ 142.80
105	WR78X27323		Ps Door Ff Black		Appelez-nous	-
106	WR14X27381		Gasket Door Ff Bb		Appelez-nous	-
107	WR14X27382		Gasket Door Fz Bb				$ 170.71
108	WR71X27387		Fresh Food Door Gallon Bin		Appelez-nous	-
109	WR71X27450		Fresh Food Door Rail Bin		Appelez-nous	-
110	WR01X27287		Cover Dairy Bin		Appelez-nous	-
111	WR71X27389		Freezer Door Rail Bin		Appelez-nous	-
113	WR01X27333		Screw 3.9mm X 16mm		Appelez-nous	-
114	WR01X27334		Screw Dove Tail		Appelez-nous	-
115	WR02X27453		Door Thimble Black		Appelez-nous	-
116	WR02X11774		Plug Button Thimble		Appelez-nous	-
117	WR01X27330		Screw #8 X 9/16"		Appelez-nous	-
118	WR01X27349		Fresh Food Door Stop		Appelez-nous	-
119	WR01X27336		Screw Ph St 3.9x19		Appelez-nous	-
120	WR01X27350		Freezer Door Stop		Appelez-nous	-
121	WR02X27460		Door Cap Right Corner Black		Appelez-nous	-
122	WR02X27461		Door Cap Left Corner Black		Appelez-nous	-
