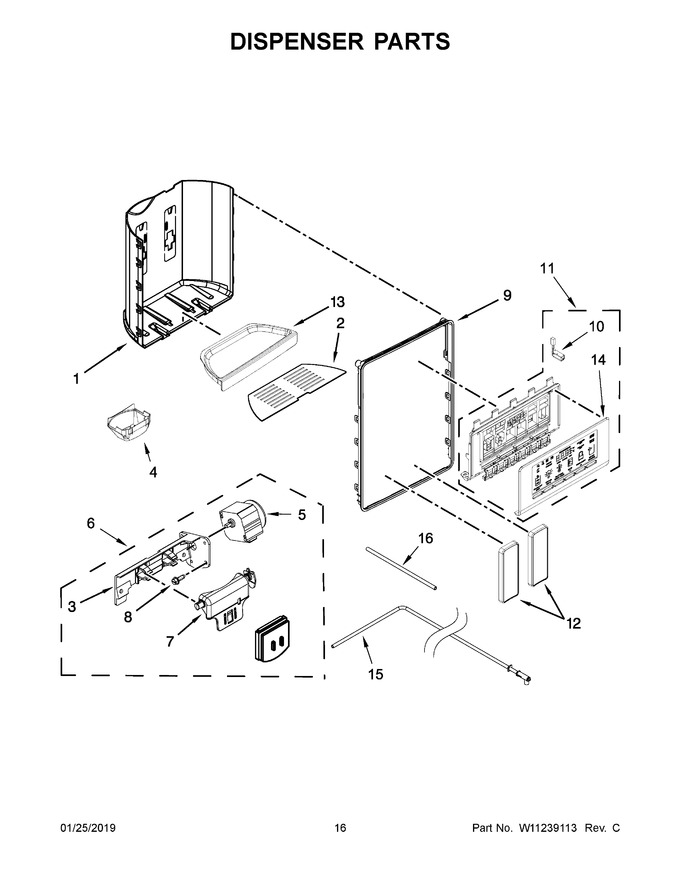

09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11309262		Wall, Dispenser False (sunset Bronze)   (Replaces: W11084899)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 77.67
3	W10174827		Bracket, Ice Door				$ 72.78
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 22.80
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 99.16
6	W11098702		Assembly, Separator   (Replaces: W10781994)				$ 147.20
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 39.86
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.49
9	W11087882		Ring, Trim (chromium Frost)				$ 70.05
10	W11216993		Lamp, Led   (Replaces: W11125625)			Immediately	$ 43.24
11	W11239666		Assembly, User Interface (includes Light Feature)   (Replaces: W11174483)				$ 430.42
12	W11624941		Pad, Ice And Water (grey)   (Replaces: W10370582)				$ 67.45
13	W11309268		Tray, Drip (sunset Bronze)   (Replaces: W11084898)		Appelez-nous	-
14	W10458867		Cover, Front (black)				$ 288.41
15	WPW10386778		Assembly, Water Fitting   (Replaces: W10386778)			Immediately	$ 126.42
16	W11620106		Tube, Water   (Replaces: W10691730)				$ 112.23
13A	W10276225		Tray, Drip (satina)				$ 70.53
1A	W10276226		Wall, Dispenser False (satina)				$ 134.43
