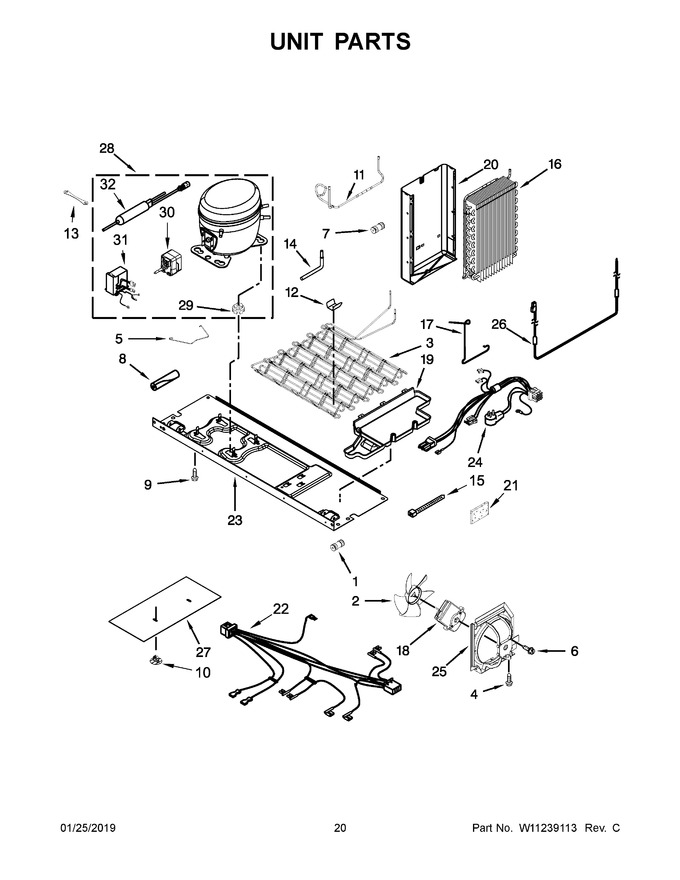

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | W11708426 | Assembly, Condenser (Replaces: W10240365) |
|
$ 258.28 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | 2212996 | Strap, Bale |
|
$ 12.11 | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.06 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 66.26 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 20.30 | ||||
| 9 | 3400524 | Screw (Replaces: W10142287) |
|
$ 12.65 | |||||
| 10 | W10815861 | Clip, Bottom Cover |
|
$ 15.05 | |||||
| 11 | W11311688 | Tube, Suction (Replaces: W11117259) |
|
$ 84.45 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 18.46 | |||||
| 13 | W10236396 | Strap, Compressor |
|
Immediately | $ 19.82 | ||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 7.72 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 339.85 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 19 | W10714793 | Tray, Evaporator (includes Gasket) |
|
$ 156.50 | |||||
| 20 | W10274575 | Shield, Heat |
|
$ 96.68 | |||||
| 21 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 22 | W11676780 | Assembly, Unit Wire (Replaces: W10670174) |
|
$ 74.01 | |||||
| 23 | W10277704 | Basepan |
|
$ 169.00 | |||||
| 24 | WPW10242407 | Cord, Power (Replaces: W10242407) |
|
$ 77.11 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 80.76 | |||||
| 26 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 159.36 | ||||
| 27 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 28 | W10309988 | Compressor (also Order 876765 Tube Kit) (Replaces: W10253005) |
|
Immediately | $ 559.32 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 30 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 31 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 32 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 30.78 | ||||
| NI | N/P | Refrigerant Charge 5.0 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 128.09 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 130.71 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 91.35 |
