Control Panel And Outer Door Parts


Dishrack Parts


Fill Drain And Base Parts

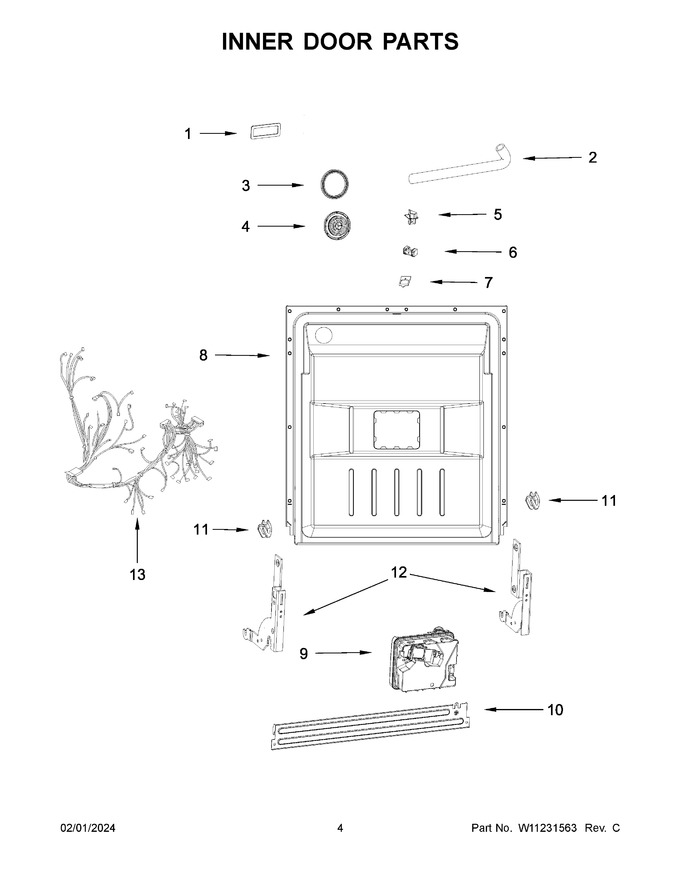

Inner Door Parts


Pump And Motor Parts


Tub And Frame Parts


Wash System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11225863		Gasket, Vent				$ 20.06
2	W11225868		Duct, Vent		Appelez-nous	-
3	W11243344		Gasket   (Replaces: W11226131)			Immediately	$ 11.69
4	W11243345		Deflector   (Replaces: W11226138)				$ 62.90
5	W11226146		Hook, Door Latch				$ 77.62
6	W11226241		Strike, Latch				$ 77.61
7	W11226261		Gasket				$ 19.90
8	W11226196		Inner Door Assembly				$ 332.59
9	W11689795		Dispenser   (Replaces: W11226203)			Immediately	$ 217.22
10	W11243347		Door Stiffener   (Replaces: W11226206)			Immediately	$ 32.61
11	W11243348		Snap Ring   (Replaces: W11226223)			Immediately	$ 20.02
12	W11226198		Hinge Assembly (left Hand)			Immediately	$ 209.39
13	W11334448		Wiring Harness		Appelez-nous	-
12A	W11226199		Hinge Assembly (right Hand)				$ 209.39
