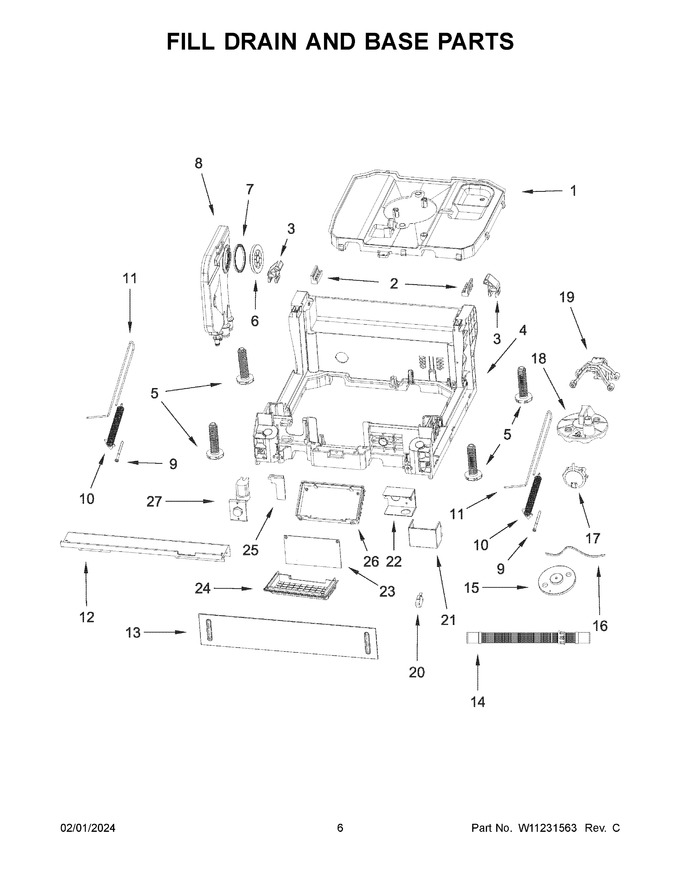

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11226311 | Cover, Base |
|
- | |||||
| 2 | W11226333 | Tub Support |
|
- | |||||
| 3 | W11226329 | Connecting Block, Tub |
|
$ 19.29 | |||||
| 4 | W11243361 | Base Assembly (Replaces: W11226334) |
|
Immediately | $ 168.98 | ||||
| 5 | W11678567 | Leveling Leg (Replaces: W11226335) |
|
Immediately | $ 15.16 | ||||
| 6 | W11243378 | Nut, Air Breather (Replaces: W11226568) |
|
- | |||||
| 7 | W11243380 | Gasket (Replaces: W11226570) |
|
$ 12.89 | |||||
| 8 | W11226325 | Air Breather |
|
$ 114.40 | |||||
| 9 | W11243388 | Adjustment Screw, Door Spring (Replaces: W11226867) |
|
- | |||||
| 10 | W11243386 | Spring (Replaces: W11226866) |
|
Immediately | $ 31.73 | ||||
| 11 | W11226865 | Door Rope |
|
Immediately | $ 31.64 | ||||
| 12 | W11243382 | Acoustic Panel (Replaces: W11226557) |
|
$ 132.30 | |||||
| 13 | W11243362 | Access Panel (black) |
|
Immediately | $ 127.88 | ||||
| 14 | W11243383 | Drain Hose (Replaces: W11226860) |
|
Immediately | $ 108.99 | ||||
| 15 | W11226858 | Float |
|
Immediately | $ 88.88 | ||||
| 16 | W11226857 | Pipe |
|
Immediately | $ 103.87 | ||||
| 17 | W11226502 | Pressure Switch |
|
$ 104.22 | |||||
| 18 | W11226494 | Seat, Float |
|
$ 89.35 | |||||
| 19 | W11226339 | Assembly, Pump Support |
|
- | |||||
| 20 | W11243384 | Microswitch (Replaces: W11226864) |
|
$ 35.74 | |||||
| 21 | W11226540 | Cover, Junction Box |
|
$ 26.60 | |||||
| 22 | W11226537 | Base, Junction Box |
|
- | |||||
| 23 | W11524809 | Electronic Control (Replaces: W11226531) |
|
Immediately | $ 312.09 | ||||
| 24 | W11226535 | Cover, Pcb Box |
|
- | |||||
| 25 | W11226514 | Block |
|
- | |||||
| 26 | W11226520 | Pcb Box |
|
- | |||||
| 27 | W11689828 | Inlet Valve (Replaces: W11226511) |
|
Immediately | $ 91.13 |
