Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11230092 Handle, Pocket (black) Special Order $ 111.12

2 W11230093 Cover, Control Board Appelez-nous -
3 W11230094 Cover, Control Board Special Order $ 25.73

4 W11484625 Control Board Assembly, Display   (Replaces: W11230098) In-Stock Immediately $ 267.45

5 W11230101 Light Guide, Double Appelez-nous -
6 W11230104 Light Guide, Single Appelez-nous -
7 W11230106 Light Guide, Triple Appelez-nous -
8 W11230107 Console Assembly (black) In-Stock Immediately $ 394.84

9 W11230109 Button (cycles (black)) Appelez-nous -
10 W11230124 Console Overlay (left Hand (black)) Appelez-nous -
11 W11230128 Panel, Front (black) Special Order $ 321.17

10A W11230127 Console Overlay (right Hand (black)) Appelez-nous -
10B W11230189 Console Overlay (left Hand (white)) Appelez-nous -
10C W11230190 Console Overlay (right Hand (white)) Appelez-nous -
11A W11230191 Panel, Front (white) Special Order $ 275.25

11B W11449077 Panel, Front (stainless)   (Replaces: W11230181) Special Order $ 265.30

1A W11230182 Handle, Pocket (white) Appelez-nous -
1B W11230171 Handle, Pocket (stainless) Appelez-nous -
8A W11230183 Console Assembly (white) Special Order $ 341.04

8B W11230172 Console Assembly (stainless) In-Stock Immediately $ 353.35

9A W11230184 Button (cycles (white)) Appelez-nous -
9B W11230173 Button (cycles (stainless)) Special Order $ 16.38

9C W11230110 Button (options (black)) Appelez-nous -
9D W11230186 Button (options (white)) Appelez-nous -
9E W11230174 Button (options (stainless)) Appelez-nous -
9F W11230111 Button (delay (black)) Appelez-nous -
9G W11230187 Button (delay (white)) Appelez-nous -
9H W11230179 Button (delay (stainless)) Appelez-nous -
9I W11230113 Button (start (black)) Appelez-nous -
9J W11230188 Button (start (white)) Appelez-nous -
9K W11230180 Button (start (stainless)) Appelez-nous -

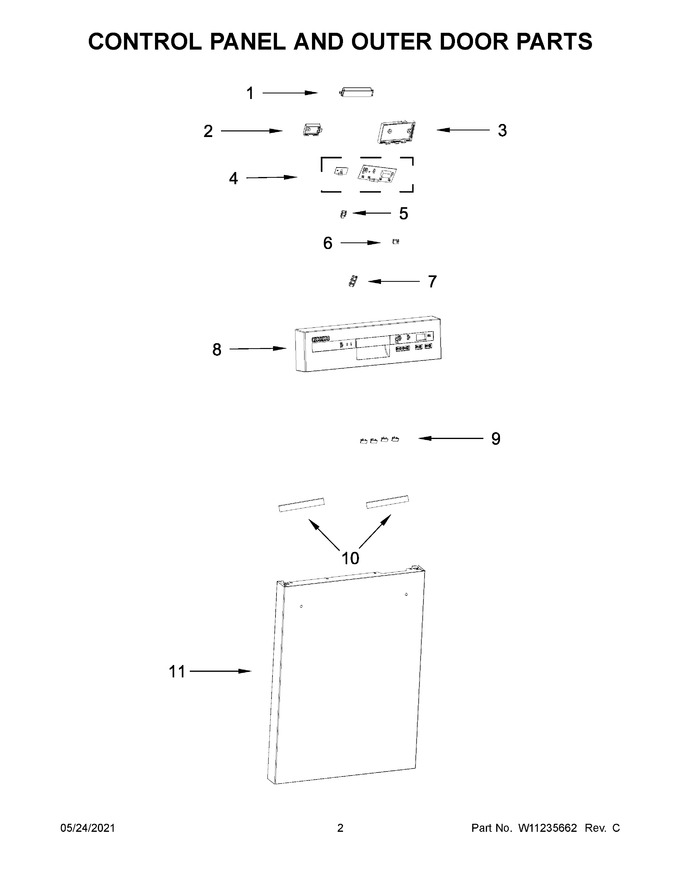

    View Diagram in Separate Window     Print Icon   Print Part List
