Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 NP Gearcase Motor Housing (refer To Color Variation Parts Page) Appelez-nous -
2 W11226273 Stop, Track Special Order $ 18.08

3 W11226276 Track Assembly (left Hand) Appelez-nous -
4 W11226286 Supporting Holder, Basket Guider Special Order $ 12.11

5 W11226280 Wheel Special Order $ 73.47

6 W11662338 Bracket (left Hand)   (Replaces: W11226292) In-Stock Immediately $ 30.37

7 W11226289 Connecting Panel (left Hand) Appelez-nous -
8 W11230139 Heating Element Assembly Special Order $ 128.47

9 W11230140 Gasket, Tub In-Stock Immediately $ 157.46

10 W11226294 Door Switch Assembly In-Stock Immediately $ 104.77

11 W11550388 Nut, Heating Element Appelez-nous -
3A W11226277 Track Assembly (right Hand) Special Order $ 141.56

6A W11662338 Bracket (right Hand)   (Replaces: W11226293) In-Stock Immediately $ 30.37

7A W11226291 Connecting Panel (right Hand) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

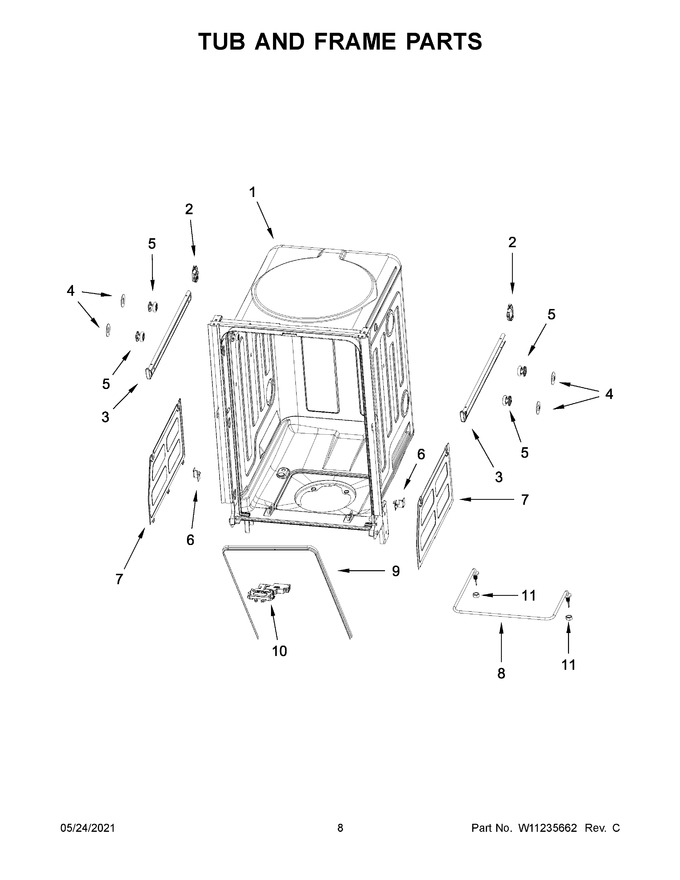

Diagram for WDF518SAHW0
