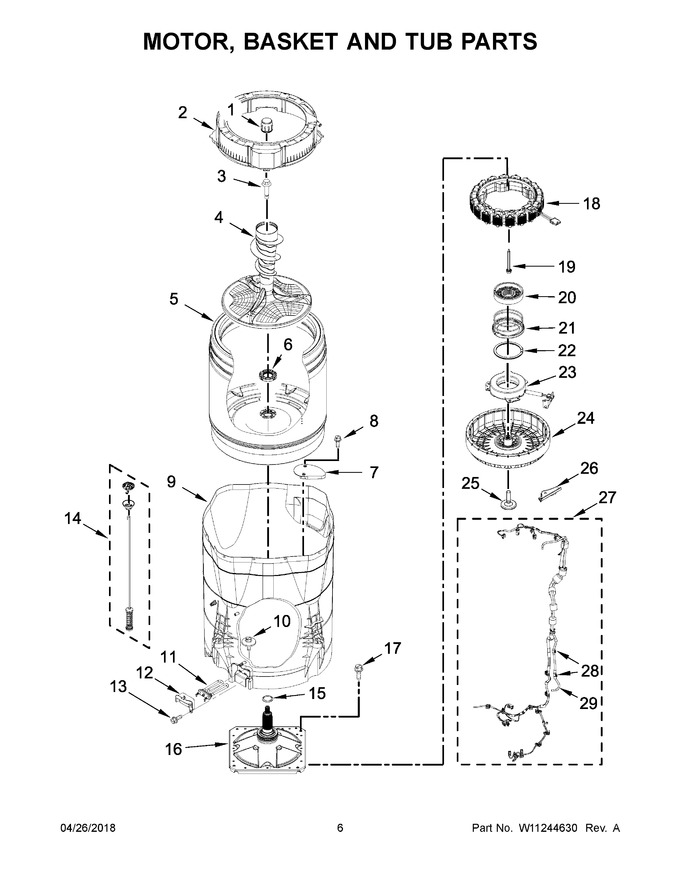

04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449080 | Cap, Agitator (Replaces: W11111466) |
|
- | |||||
| 2 | W10512171 | Tub Ring |
|
$ 189.44 | |||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 9.37 | ||||
| 4 | W11550891 | Agitator (complete) (Replaces: W10821990) |
|
Immediately | $ 113.87 | ||||
| 5 | W11208267 | Basket Assembly |
|
- | |||||
| 6 | W11665965 | Nut, Lock (Replaces: W10726440) |
|
$ 95.29 | |||||
| 7 | W10597575 | Hood, Dual Pump |
|
$ 35.14 | |||||
| 8 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 9 | W10704196 | Tub |
|
$ 339.15 | |||||
| 10 | W10743982 | Screw |
|
$ 26.54 | |||||
| 11 | W11041462 | Heater, Tub (Replaces: W10325894) |
|
$ 84.89 | |||||
| 12 | WPW10297450 | Cover, Tub Heater (Replaces: W10297450) |
|
$ 37.26 | |||||
| 13 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 14 | W11130360 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension) (Replaces: W11033800) |
|
$ 214.71 | |||||
| 15 | W11553312 | Washer, Thrust (Replaces: W10726428) |
|
Immediately | $ 15.79 | ||||
| 16 | W11393684 | Drive Assembly (Replaces: W10006491) |
|
$ 463.59 | |||||
| 17 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.55 | ||||
| 18 | W10754158 | Stator, Motor (Replaces: W10579778) |
|
Immediately | $ 238.17 | ||||
| 19 | W11027980 | Screw (Replaces: W10644129) |
|
Immediately | $ 8.12 | ||||
| 20 | W10734521 | Slider (Replaces: W10447975) |
|
Immediately | $ 42.17 | ||||
| 21 | W10734521 | Assembly, Spring (Replaces: W10006494) |
|
Immediately | $ 42.17 | ||||
| 22 | W10734521 | Ring, Snap (Replaces: W10275082) |
|
Immediately | $ 42.17 | ||||
| 23 | W10754448 | Assembly, Clutch (Replaces: W10817398) |
|
Immediately | $ 137.09 | ||||
| 24 | W10754161 | Rotor, Motor (Replaces: W10447979) |
|
Immediately | $ 220.45 | ||||
| 25 | W10752189 | Screw (Replaces: W10636382) |
|
Immediately | $ 8.86 | ||||
| 26 | W10802382 | Shield, Motor Harness |
|
- | |||||
| 27 | W10883005 | Harness, Lower |
|
- | |||||
| 28 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 29 | WP353244 | Hose Pressure Switch (Replaces: W10590949) |
|
Immediately | $ 59.93 |
