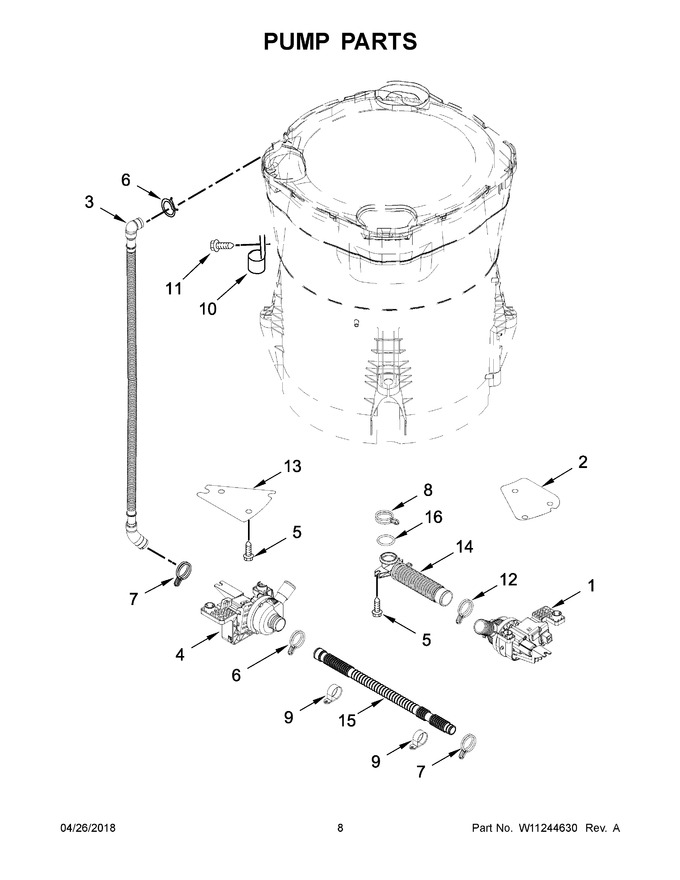

05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10876600 | Pump Assembly, Drain (Replaces: W10727777) |
|
Immediately | $ 180.49 | ||||
| 2 | W10808661 | Shield, Heat |
|
- | |||||
| 3 | W10622692 | Hose, Recirculation |
|
$ 66.74 | |||||
| 4 | W11676805 | Pump Assembly, Recirculation (Replaces: W10698222) |
|
$ 109.37 | |||||
| 5 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 6 | 3363365 | Clamp, Hose |
|
$ 11.29 | |||||
| 7 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.59 | |||||
| 8 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.81 | ||||
| 9 | W10832445 | Clamp, Cable |
|
- | |||||
| 10 | 8534021 | Clamp, Recirc Hose Retainer |
|
$ 8.85 | |||||
| 11 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 12 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 13 | W10808660 | Shield, Recirculation Pump |
|
- | |||||
| 14 | W10804012 | Hose, Tub To Pump |
|
$ 85.13 | |||||
| 15 | W10702876 | Hose, Recirculation Pump |
|
- | |||||
| 16 | W10804010 | O-ring |
|
$ 16.77 |
