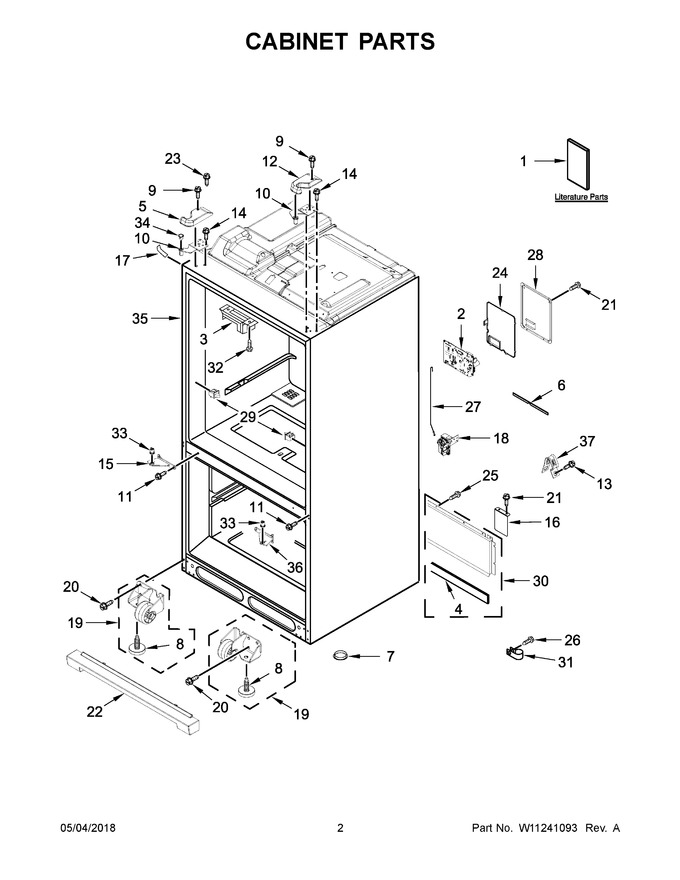

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11203256 | Tech Sheet (english) |
|
- | |||||
| 2 | W11224256 | Board, Control (Replaces: W11161172) |
|
Immediately | $ 355.53 | ||||
| 3 | WPW10344432 | Block, Pivot (Replaces: W10344432) |
|
Immediately | $ 19.16 | ||||
| 4 | W10505487 | Gasket |
|
$ 28.68 | |||||
| 5 | W10471617 | Cover, Top Hinge (black) |
|
$ 24.13 | |||||
| 6 | W10415341 | Gasket, Hv Box |
|
$ 37.00 | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11592405 | Hinge, Top (left Hand) (Replaces: W10248410) |
|
$ 32.31 | |||||
| 11 | W10673842 | Screw (black) |
|
$ 14.53 | |||||
| 12 | W10407157 | Cover, Top Hinge (black) |
|
$ 23.06 | |||||
| 13 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 14 | W11126052 | Screw (Replaces: W10731474) |
|
Immediately | $ 14.73 | ||||
| 15 | W10407279 | Hinge, Center (black) (Replaces: W10248705) |
|
$ 82.59 | |||||
| 16 | W10336736 | Cover, Roller |
|
- | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W10865826 | Valve, Water (Replaces: W10394076) |
|
Immediately | $ 69.09 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 22 | WPW10637669 | Grille, Toe (black) (Replaces: W10637669) |
|
$ 134.32 | |||||
| 23 | W11214483 | Screw (Replaces: 12992601) |
|
Immediately | $ 14.72 | ||||
| 24 | W10768379 | Lid, Hv |
|
$ 83.60 | |||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 26 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 27 | W11209890 | Tube, Water (Replaces: W10913008) |
|
$ 119.27 | |||||
| 28 | W10754144 | Cover, Control Box |
|
$ 86.16 | |||||
| 29 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 30 | W11482027 | Cover, Unit (Replaces: W10577369) |
|
Immediately | $ 121.36 | ||||
| 31 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 32 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 33 | WPW10505294 | Coupler, Door (Replaces: W10505294) |
|
$ 11.90 | |||||
| 34 | W10212137 | Retainer, Door |
|
$ 13.69 | |||||
| 35 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 36 | W10407275 | Hinge, Center (black) (Replaces: W10248702) |
|
$ 79.94 | |||||
| 37 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 10A | W11592404 | Hinge, Top (right Hand) (Replaces: W10248409) |
|
$ 25.90 | |||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 1A | W11203267 | Tech Sheet (french) |
|
- | |||||
| 1B | W11218735 | Use And Care Guide |
|
- | |||||
| 1C | W11223076 | Energy Guide |
|
- |
