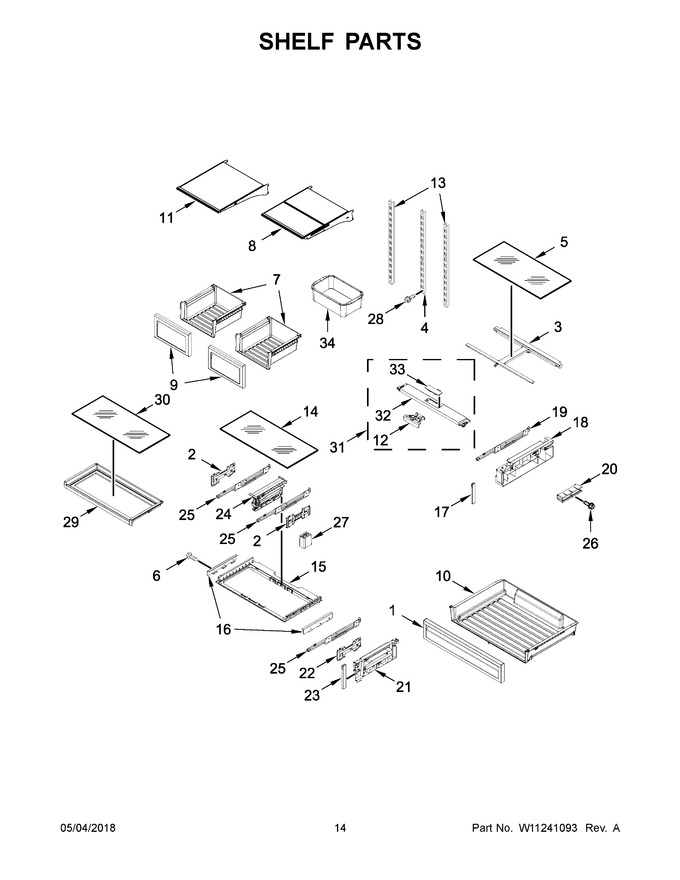

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11034025		Front, Pantry   (Replaces: W10789433)			Immediately	$ 282.60
2	W10530317		Plate, Slide Center				$ 15.28
3	W11224265		Support, Pantry   (Replaces: W11124673)				$ 158.57
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 35.89
5	W11092486		Glass, Pantry   (Replaces: W10893769)				$ 251.93
6	W10847999		Screw				$ 13.47
7	W10919809		Pan, Crisper   (Replaces: W10624433)				$ 130.94
8	WPW10737427		Shelf, Tuck   (Replaces: W10737427)				$ 283.55
9	W11094883		Front, Crisper   (Replaces: W10789490)			Immediately	$ 262.98
10	WPW10654844		Pan, Pantry   (Replaces: W10654844)			Immediately	$ 130.40
11	WPW10756310		Shelf, Fixed   (Replaces: W10756310)				$ 266.61
12	W10512596		Knob, Pantry Temperature Control		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 50.62
14	W11228031		Ladder, Side   (Replaces: W10893773)				$ 244.50
15	W11133643		Cover, Crisper				$ 200.29
16	W11133647		Rail, Side (left Hand)				$ 139.56
17	W10467416		Plate, Pantry Front				$ 38.26
18	WPW10498906		Plate, Side Pantry (left Hand)   (Replaces: W10498906)				$ 132.04
19	W10499289		Slide, Pantry (left Hand)				$ 354.74
20	W10432697		Insulation, Sideplate				$ 14.63
21	W11315181		Plate, Crisper (left Hand)   (Replaces: W10530318)				$ 80.13
22	W10530316		Plate, Side				$ 27.43
23	W10467415		Plate, Crisper Front				$ 72.29
24	W10530307		Track, Center				$ 89.27
25	W11233912		Slide, Crisper   (Replaces: W10248819)				$ 284.43
26	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
27	W10530315		Support, Crisper				$ 17.00
28	W10423560		Screw		Appelez-nous	-
29	W11549360		Assembly,platter Shelf   (Replaces: W11133656)				$ 211.06
30	W11228263		Glass, Platter   (Replaces: W11169584)				$ 253.18
31	W11228264		Assembly, Pantry Front Cover   (Replaces: W11124643)				$ 114.58
32	WPW10554285		Cover, Pantry Top   (Replaces: W10554285)				$ 170.63
33	W11228266		Housing, Pantry Temperature Control   (Replaces: W11210629)		Appelez-nous	-
34	WPW10248856		Bucket, Gallon   (Replaces: W10248856)			Immediately	$ 83.43
16A	W11133648		Rail, Side (right Hand)				$ 139.56
18A	W11225684		Plate, Side Pantry (right Hand)   (Replaces: W11124810)				$ 98.97
19A	W11759682		Slide, Pantry (right Hand)   (Replaces: W10499294)				$ 69.89
21A	W11315180		Plate, Crisper (right Hand)   (Replaces: W10530306)				$ 24.96
