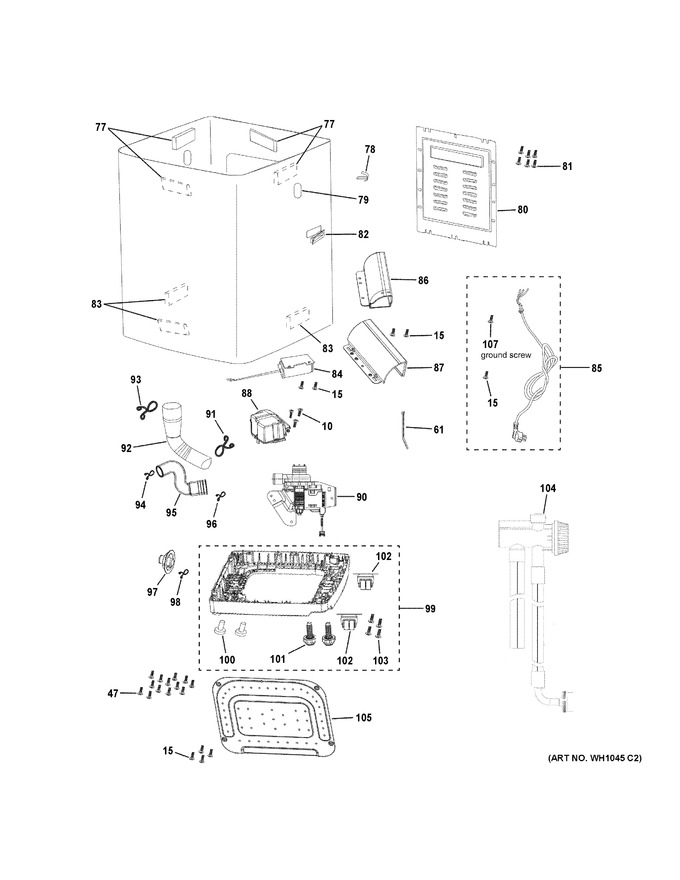

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WH02X26247		Screw				$ 1.71
15	WH02X26155		Tapping Screw		Appelez-nous	-
47	WH02X26189		Tapping Screw		Appelez-nous	-
61	WH01X27678		Long Wire Tie		Appelez-nous	-
77	WH08X26934		Felt Pad		Appelez-nous	-
78	WH02X26928		Harness Clip		Appelez-nous	-
79	WH01X26929		Hook		Appelez-nous	-
80	WH46X26926		Rear Access Panel		Appelez-nous	-
81	WH02X26927		Capacitor Screws		Appelez-nous	-
82	WH01X26974		Cabinet Handle		Appelez-nous	-
83	WH08X27270		Lower Cabinet Foam Pad		Appelez-nous	-
84	WH12X26932		Capacitor				$ 46.56
85	WH19X27454		Power Cord Asm		Appelez-nous	-
86	WH19X27455		Protective Cover		Appelez-nous	-
87	WH19X27677		Outer Harness Protective Cover		Appelez-nous	-
88	WH23X27456		Pump Cover		Appelez-nous	-
90	WH23X28134		Pump		Appelez-nous	-
91	WH41X26954		Internal Drain Hose Clamp Tub Outlet		Appelez-nous	-
92	WH41X26956		Internal Tub To Pump Drain Hose		Appelez-nous	-
93	WH41X26955		Internal Drain Hose Clamp - Pump Inlet		Appelez-nous	-
94	WH41X26957		Internal Drain Hose To Hose Adapter Clam		Appelez-nous	-
95	WH41X26958		Internal Drain Hose Pump To Hose Adapte		Appelez-nous	-
96	WH41X26959		Internal Drain Hose Clamp To Pump Outle		Appelez-nous	-
97	WH41X26961		Drain Hose Adapter		Appelez-nous	-
98	WH41X26962		External Drain Hose Clamp		Appelez-nous	-
99	WH46X27458		Base		Appelez-nous	-
100	WH46X27459		Foot Wheel		Appelez-nous	-
101	WH46X26965		Leveling Legs				$ 17.41
102	WH46X26964		Roller Assembly Front		Appelez-nous	-
103	WH02X27460		Caster Screw		Appelez-nous	-
104	WH41X27468		Unicouple		Appelez-nous	-
105	WH46X26966		Access Panel Bottom		Appelez-nous	-
107	WH02X27451		Ground Screw		Appelez-nous	-
