SELECT A DIAGRAM

Cabinet

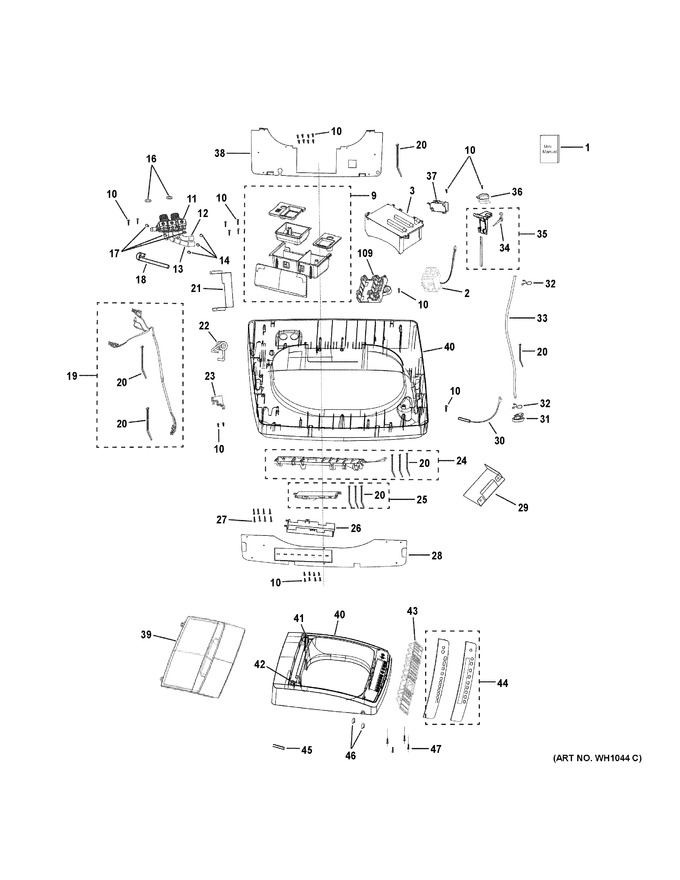

Controls & Lid


Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-90587		Pm Owners Manual		Appelez-nous	-
1	31-16936		Pm Mini Manual		Appelez-nous	-
2	WH18X26847		Rj45 Port		Appelez-nous	-
3	WH47X26967		Dispenser Box		Appelez-nous	-
9	WH47X26968		Dispenser Drawer Asm		Appelez-nous	-
10	WH02X26247		Screw				$ 1.71
11	WH13X26856		Water Valve Inlet Tube		Appelez-nous	-
12	WH13X26858		Water Valve Inlet Tube Hot		Appelez-nous	-
13	WH13X27262		Water Valve Inlet Tube Combined		Appelez-nous	-
14	WH13X26857		Water Valve Inlet Tube Clamp		Appelez-nous	-
16	WH08X26187		Water Valve Absorption Gasket			Immediately	$ 10.14
17	WH13X26859		Water Valve Inlet Tube Clamp		Appelez-nous	-
18	WH13X26975		Water Valve Inlet Tube Cold		Appelez-nous	-
19	WH19X27439		Harness Main		Appelez-nous	-
20	WH02X26866		Wire Tie		Appelez-nous	-
21	WH13X27440		Thermovolt Water Valve		Appelez-nous	-
22	WH02X26860		Lid Spring		Appelez-nous	-
23	WH44X26861		Hinge Spring Cover		Appelez-nous	-
24	WH18X27441		User Interface Board		Appelez-nous	-
25	WG04F11425		Main Board   (Replaces: WH18X27442)			Immediately	$ 273.35
26	WH18X26864		Main Board Shield Metal		Appelez-nous	-
27	WH02X26514		Front Dispenser Housing Screw St4x14		Appelez-nous	-
28	WH44X27477		Top Cover Splash Cover Front		Appelez-nous	-
29	WH18X27443		Thermovolt Pcb		Appelez-nous	-
30	WH44X27476		Lid Reed Switch		Appelez-nous	-
31	WH12X26869		Water Level Sensor		Appelez-nous	-
32	WH02X26870		Water Level Sensor Tube Clamp				$ 1.71
33	WH41X26871		Water Level Sensor Tube				$ 14.95
34	WH02X26900		Out Of Balance Switch Lever Spring				$ 1.77
35	WH01X27444		Out Of Balance Switch Lever		Appelez-nous	-
36	WH12X26877		Out Of Balance Switch		Appelez-nous	-
37	WH12X26878		Lid Switch		Appelez-nous	-
38	WH15X26879		Top Cover Splash Cover Rear		Appelez-nous	-
39	WH44X26880		Lid		Appelez-nous	-
40	WH44X26846		Top Cover		Appelez-nous	-
41	WH44X27264		Left Hinge		Appelez-nous	-
42	WH44X27263		Right Hinge		Appelez-nous	-
43	WH42X26901		Light Pipe		Appelez-nous	-
44	WH42X27445		Front Control Panel		Appelez-nous	-
45	WH02X26903		Lid Hinge Clip		Appelez-nous	-
46	WH02X26902		Screw Cover				$ 9.59
47	WH02X26189		Tapping Screw		Appelez-nous	-
109	WH19X27478		Harness Connector Holder		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
