SELECT A DIAGRAM

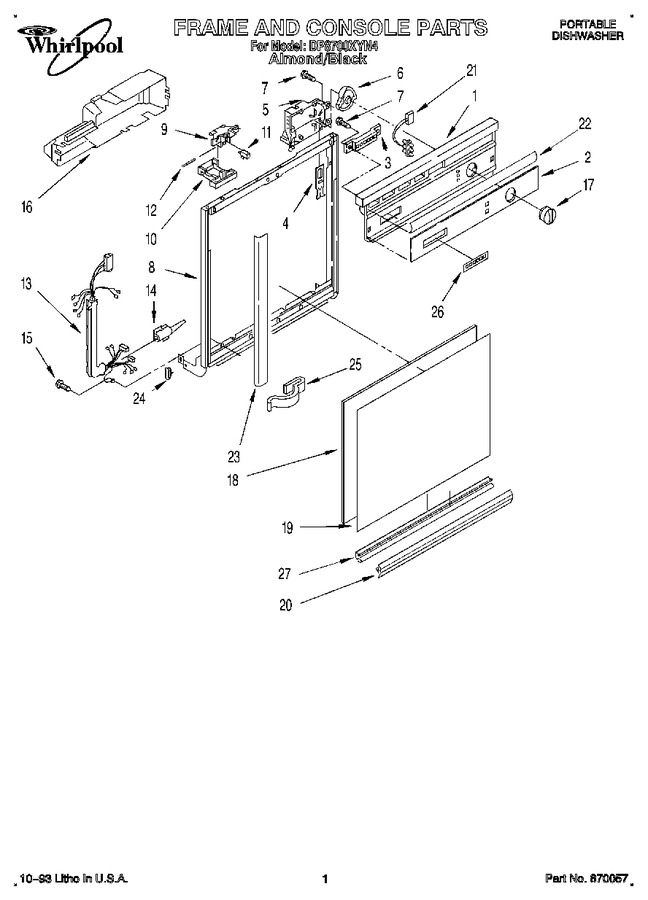

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack, Literature


06 - Cabinet, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3371834		Console (includes Item 2)		Appelez-nous	-
2	3372125		Insert, Console		Appelez-nous	-
3	3369564		Switch		Appelez-nous	-
4	3368997		Follower, Cam				$ 35.20
5	3369358CP		Timer   (Replaces: 3369358)		Appelez-nous	-
6	3369415		Cam		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	3374018		Door Frame (includes Item 27)		Appelez-nous	-
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 66.11
10	WP3368954		Lever, Latch   (Replaces: 3368954)				$ 8.70
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3369766		Harness And Protector		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 9412221)				$ 7.08
16	3373367		Cover Timer		Appelez-nous	-
17	3368998		Knob, Timer				$ 54.55
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Panel, Front (almond/black)   (Replaces: 3369516)				$ 59.42
20	3374010		Retainer, Panel				$ 40.68
21	3369318		Light Assembly		Appelez-nous	-
22	3369598		Trim, Console		Appelez-nous	-
23	3369592		Trim (2)		Appelez-nous	-
24	WP3373234		Bearing, Spring   (Replaces: 3373234)				$ 11.01
25	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
26	3369569		Insert, Switch		Appelez-nous	-
27	3374015		Channel, Retainer (also Order Item No.20)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
