01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Pump And Motor

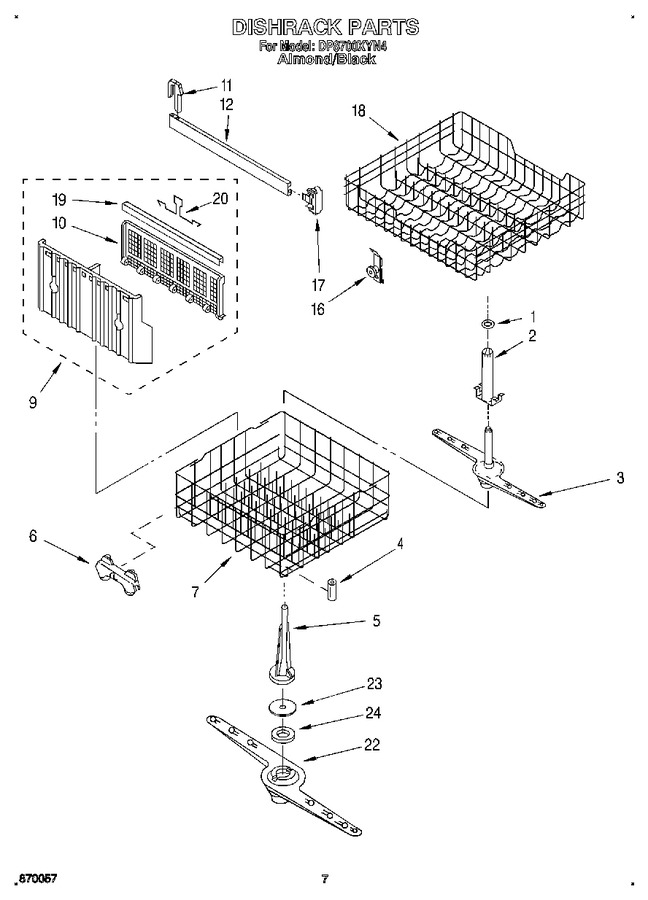

05 - Dishrack, Literature
06 - Cabinet, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 303722 | Clip |
|
$ 5.75 | |||||
| 2 | 3368290 | Support, Arm |
|
- | |||||
| 3 | 3368300 | Spray Arm, Upper |
|
- | |||||
| 4 | WP3385142 | Bumper (2) (Replaces: 3368006) |
|
$ 94.82 | |||||
| 5 | 300848 | Tower, Pressure |
|
- | |||||
| 6 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3369509) |
|
$ 98.69 | |||||
| 7 | W10311986 | Dishrack, Lower (Replaces: 3370486) |
|
Immediately | $ 188.14 | ||||
| 9 | 3369488 | Silverware Basket Assembly |
|
- | |||||
| 10 | 3369485 | Cover, Basket |
|
- | |||||
| 11 | 3369046 | Stop, Track (2) |
|
- | |||||
| 12 | 3369071 | Track |
|
- | |||||
| 16 | WPW10204131 | Adjuster Assy. (Replaces: 3373365) |
|
Immediately | $ 9.16 | ||||
| 17 | 300845 | End Cap |
|
$ 7.63 | |||||
| 18 | W11169039 | Dishrack, Upper (Replaces: 3369901) |
|
Immediately | $ 203.14 | ||||
| 19 | 717528 | Trim, Basket |
|
- | |||||
| 20 | 300086 | Handle, Basket |
|
- | |||||
| 22 | 3369347 | Sprayarm, Lower |
|
- | |||||
| 23 | 3367910 | Cap, Nozzle |
|
$ 39.70 | |||||
| 24 | 719576 | Bearing, Nozzle |
|
$ 7.48 | |||||
| LIT0677967 | Do-it Yourself Manual |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350942 | Primer (white) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 285006 | Paint, Spray 13 Oz. (black) |
|
$ 59.89 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| 676458 | Tine Tip Repair Kit (grey Enough For Two Complete Dishracks) |
|
$ 48.32 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| WP676455 | Vinyl Touch-up (grey) (Replaces: 676455) |
|
Immediately | $ 39.58 | |||||
| 675679 | Tine Tip Repair Kit (white - Enough For Two Complete Dishracks) |
|
Immediately | $ 38.83 | |||||
| WP676453 | Vinyl Touch-up (white) (Replaces: 676453) |
|
Immediately | $ 53.65 | |||||
| 675677 | Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| W10840471 | Vinyl Touch-up (blue) (Replaces: 675576) |
|
$ 47.66 | ||||||
| 4318050 | Door Spring Kit (heavy Duty) |
|
$ 23.68 | ||||||
| LIT3374367 | Instructions, Installation |
|
- | ||||||
| LIT3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | ||||||
| LIT3372194 | Energy Guide |
|
- | ||||||
| LIT3373748 | Guide, Use & Care |
|
- | ||||||
| LIT3370467 | Wiring Diagram |
|
- | ||||||
| 799340 | Black (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- |
