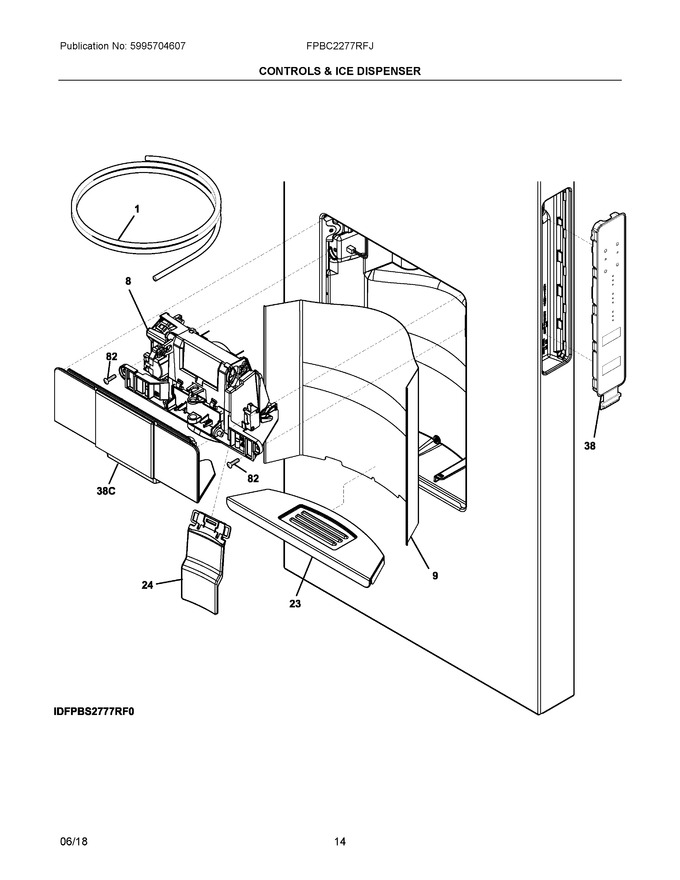

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 26.78 | ||||
| 8 | 5303918773 | Module Assembly, Ice & Water, Complete (Replaces: 242270203) |
|
Immediately | $ 283.47 | ||||
| 9 | 809089801 | Liner, Sump Back, Stainless |
|
$ 216.56 | |||||
| 23 | 5304501179 | Sump Assembly, Ice & Water, Stainless |
|
$ 189.59 | |||||
| 24 | 5304501181 | Actuator, Ice Lever, Silver |
|
$ 112.07 | |||||
| 38 | 5304510329 | User Interface, Assembly, Black, W/board & Pad |
|
Immediately | $ 271.69 | ||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 38C | 809091203 | Control Assembly, Dispenser Uib, Stanless/black, W/touch Pad (Replaces: 809091201) |
|
$ 430.46 | |||||
| NI | 5304501175 | Harness, Wiring, Dispenser, To Watson Cntl. |
|
$ 42.53 | |||||
| NI | 242040806 | Harness-wiring, Door |
|
$ 47.25 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 67.73 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 225.82 | |||||
| NIA | 218976435 | Tube-water, 5/16-37", Yellow, Valve To, Back Connector |
|
$ 22.84 | |||||
| NIB | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIC | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 |
