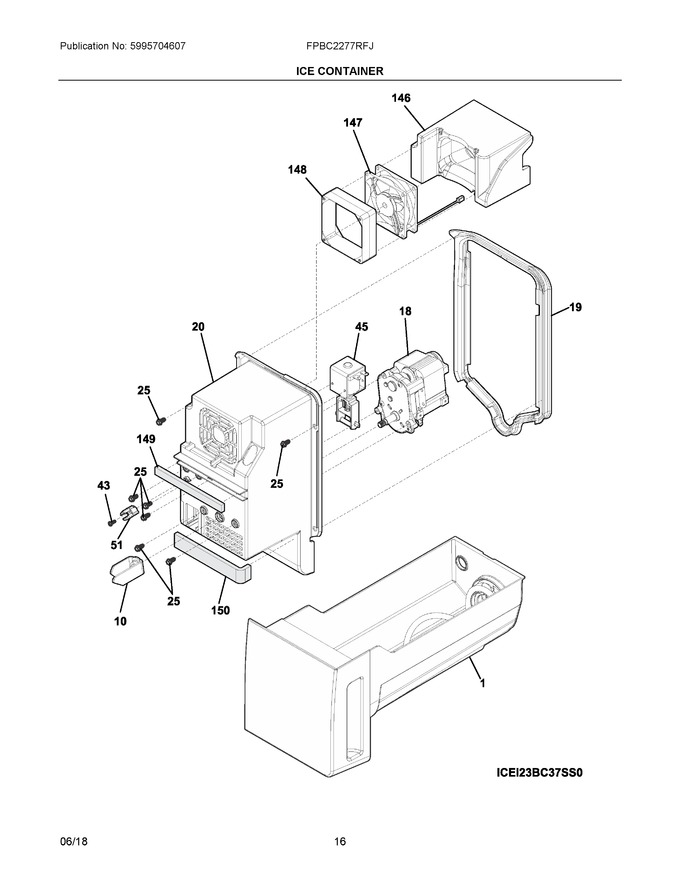

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242100111 | Ice Container Assy, W/moving Parts |
|
$ 285.08 | |||||
| 10 | 241829001 | Bar-drive |
|
Immediately | $ 65.05 | ||||
| 18 | 241816602 | Motor-auger |
|
Immediately | $ 171.96 | ||||
| 19 | 5304508066 | Gasket, Air Handler |
|
$ 45.73 | |||||
| 20 | 5304508036 | Housing, Air Handler |
|
$ 102.81 | |||||
| 25 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 43 | 241641502 | Screw |
|
$ 9.45 | |||||
| 45 | 241675704 | Solenoid Assy, 115v (Replaces: 241675701) |
|
Immediately | $ 73.01 | ||||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im |
|
Immediately | $ 22.84 | ||||
| 146 | 5304508072 | Support, Fan |
|
$ 53.09 | |||||
| 147 | 5304493604 | Fan Assembly, Motor, With Blade (Replaces: 242119401) |
|
Immediately | $ 100.61 | ||||
| 148 | 5304508063 | Grommet, Fan |
|
Immediately | $ 17.69 | ||||
| 149 | 242095415 | Gasket |
|
Immediately | $ 12.05 | ||||
| 150 | 242095423 | Gasket |
|
Immediately | $ 23.40 | ||||
| NIA | 5304521762 | Harness, Wiring, Air Handler, W/evap Thrmistr (Replaces: 5304508052) |
|
$ 107.47 |
