SELECT A DIAGRAM

01 - Frame & Console, Literature


02 - Inner Door


03 - Tub Assembly


04 - Dishrack


05 - Pump And Motor


06 - Cabinet


07 - Miscellaneous

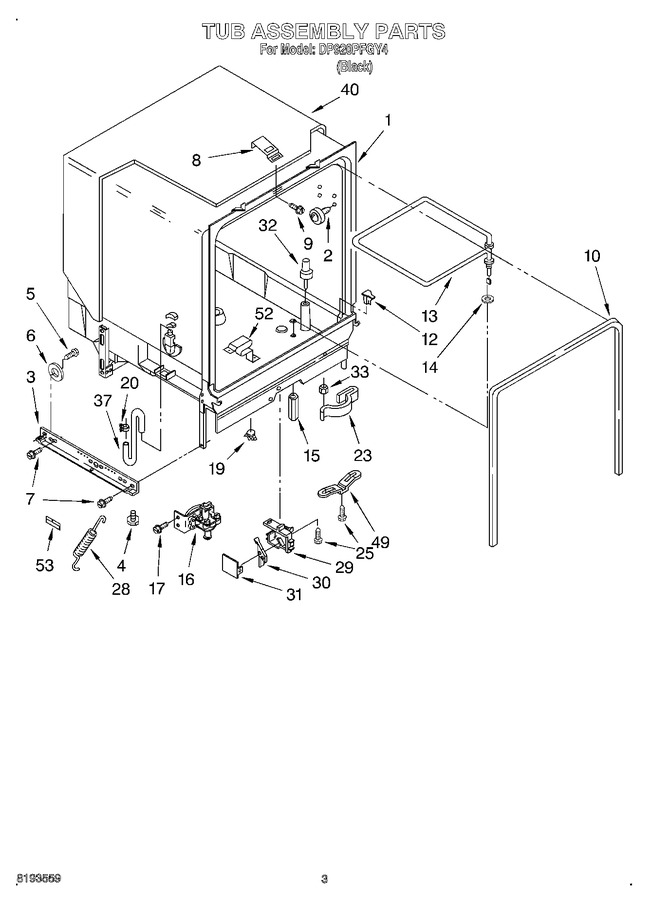

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3378160		Tub Assembly		Appelez-nous	-
2	3380371		Tub, Wheel Assembly (8)				$ 17.44
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
12	WP8528862		Deflector (2)   (Replaces: 8268872)				$ 63.90
13	WPW10082896		Heater (includes Item 14)   (Replaces: 3379487)				$ 141.38
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	3378706		Nut (2) (heater Terminal)		Appelez-nous	-
16	WP8274220		Water Valve   (Replaces: 8274220)				$ 223.48
17	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
19	WP661566		Thermostat   (Replaces: 661566)			Immediately	$ 31.28
20	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
23	WP98997		Clip   (Replaces: 98997)				$ 11.64
25	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
28	WP3374343		Spring, Door (2)   (Replaces: 3374343)			Immediately	$ 35.13
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP3376397		Float & Washer Assembly   (Replaces: 8519587)				$ 108.64
33	717488		Nut				$ 12.83
37	3371030		Hose, Inlet		Appelez-nous	-
40	W11086533		Shield, Sound   (Replaces: 8318252)			Immediately	$ 31.30
49	W10539489		Bracket, Thermostat   (Replaces: 3378595)				$ 20.14
52	3379740		Support, Heater (2)				$ 51.56
53	8520838		Friction Pad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
