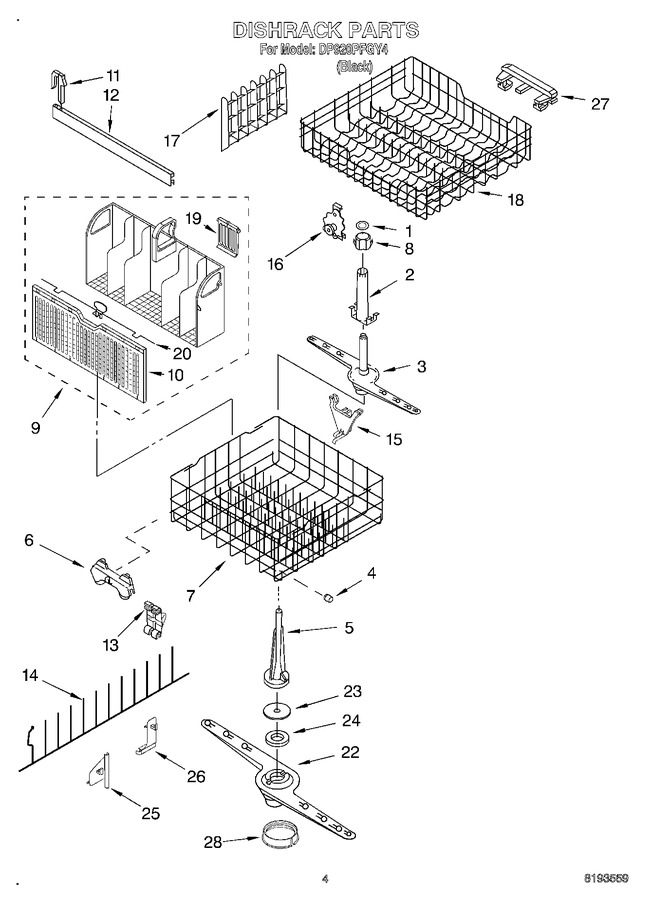

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303722		Clip				$ 5.75
2	8268838		Support, Arm (also Order Items 1 & 8)		Appelez-nous	-
3	8268829		Spray Arm, Upper (also Order Items 1 & 8)				$ 42.16
4	WP3385142		Bumper (2)   (Replaces: 8268863)				$ 94.82
5	8268862		Tower, Pressure				$ 72.62
6	WP8268645		Wheel & Transport Assembly (4)   (Replaces: 8268820)			Immediately	$ 62.31
7	W10311986		Dishrack, Lower (includes Items 4 & 6)   (Replaces: 8519579)			Immediately	$ 188.14
8	8268871		Support Lock, Spray Arm				$ 5.65
9	W11027965		Silverware Basket Assembly   (Replaces: 8268884)				$ 237.93
10	8519540		Door, Silverware Basket		Appelez-nous	-
11	3379941		Stop, Track (4)				$ 42.08
12	WP3385089		Track   (Replaces: 3385089)			Immediately	$ 80.00
13	8268522		Retainer, Flexrow				$ 5.51
14	W10728160		Flexrow, Folding   (Replaces: 8274963)			Immediately	$ 49.07
15	WP8268523		Pivot, Folddown   (Replaces: 8268523)				$ 92.46
16	WPW10204131		Adjuster Assembly   (Replaces: 8268848)			Immediately	$ 9.16
17	WP8268828		Cupshelf, Small   (Replaces: 8268828)				$ 135.89
18	W11169039		Dishrack, Upper   (Replaces: 8519572)			Immediately	$ 203.14
19	8268886		Lid, Silverware Basket		Appelez-nous	-
20	8519541		Latch Assembly		Appelez-nous	-
22	WP8268874		Sprayarm, Lower   (Replaces: 8268874)				$ 127.32
23	3367198		Cap, Nozzle		Appelez-nous	-
24	719576		Bearing, Nozzle				$ 7.48
25	8268867		Clip, Silverware Basket (left)				$ 44.85
26	8268868		Clip, Silverware Basket (right)				$ 49.81
27	8268826		Clip, Cupshelf				$ 22.17
28	WP3376846		Seal, Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
