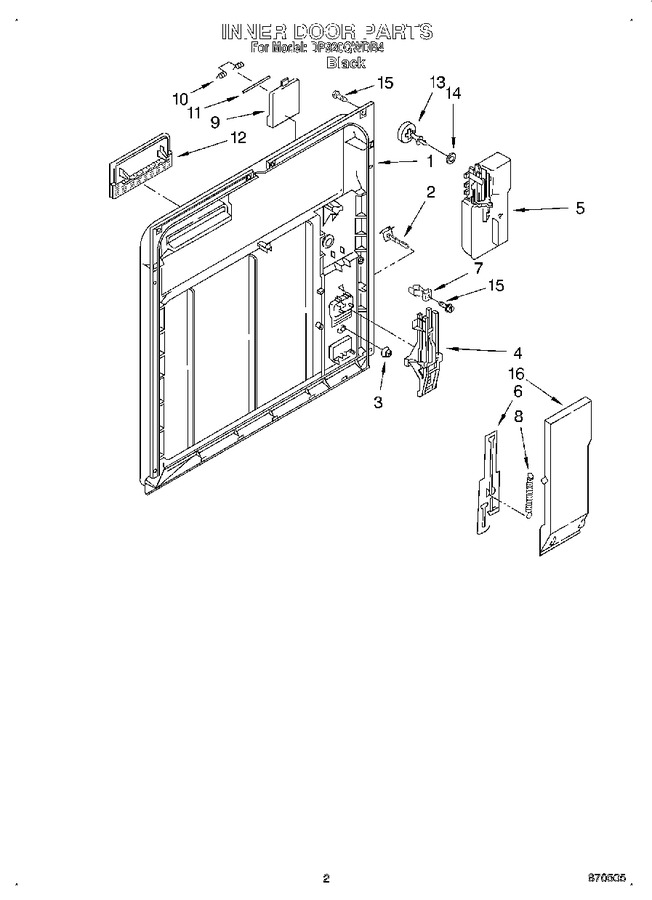

01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Dishrack
05 - Pump And Motor
06 - Cabinet
07 - Miscellaneous, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 676413 | Latch Door Kit |
|
Immediately | $ 9.23 | ||||
| 1 | 3371481 | Inner Door (also Order) |
|
- | |||||
| 2 | 676413 | Latch, Detergent Dispenser (Replaces: 3376066) |
|
Immediately | $ 9.23 | ||||
| 3 | 676413 | Snap, Detergent Dispenser (Replaces: 3369061) |
|
Immediately | $ 9.23 | ||||
| 4 | WP3369505 | Actuator Assembly (Replaces: 3369505) |
|
Immediately | $ 60.13 | ||||
| 5 | WP8052028 | Wet Agent, Dispenser (Replaces: 3369506) |
|
Immediately | $ 131.40 | ||||
| 6 | 3369448 | Draw Bar, Electronic |
|
$ 21.44 | |||||
| 7 | 3374771 | Clip, Console Door Retainer |
|
- | |||||
| 8 | WP3368999 | Spring (draw Bar) (Replaces: 3368999) |
|
Immediately | $ 8.87 | ||||
| 9 | WP3378138 | Lid Assembly (Replaces: 3376404) |
|
Immediately | $ 26.10 | ||||
| 10 | WP8066018 | Spring, Lid (Replaces: 300106) |
|
Immediately | $ 8.74 | ||||
| 11 | WP3372028 | Pin (lid Hinge) (Replaces: 3372028) |
|
Immediately | $ 11.15 | ||||
| 12 | WP3371710 | Screen, Vent (Replaces: 3371710) |
|
$ 8.32 | |||||
| 13 | WP3378134 | Wet-agent Cap Assembly (Replaces: 3369512) |
|
Immediately | $ 8.63 | ||||
| 14 | WP3378134 | Seal (wet-cap) (Replaces: 3369155) |
|
Immediately | $ 8.63 | ||||
| 15 | WPW10348409 | Screw (9) (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 16 | 3371569 | Cover, Drip |
|
$ 46.59 |
