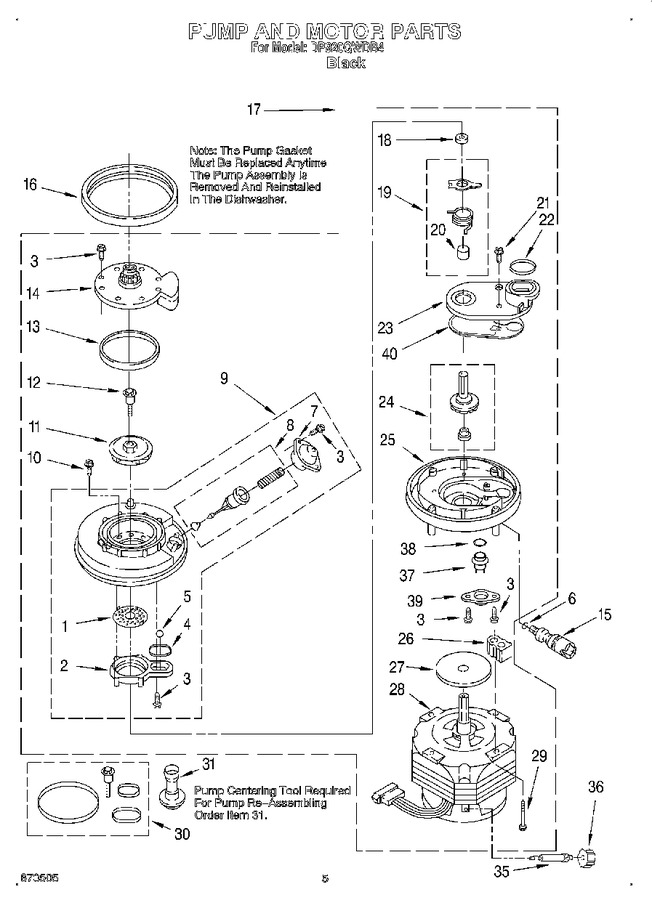

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9740982		Plate, Perforated (includes Item 5) (also Order Item 30) See Note A.		Appelez-nous	-
2	3367173		Base, Inlet (includes Items 1 & 5) (also Order Item 30) See Note A.		Appelez-nous	-
3	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
4	WP302710		Seal, Inlet Base   (Replaces: 302710)				$ 10.44
5	302709		Ball, Check				$ 7.80
6	95080		``o`` Ring		Appelez-nous	-
7	302721		Cover, Valve		Appelez-nous	-
8	302738		Valve Stem Kit (includes Items 12, 13 & 22) See Note A.		Appelez-nous	-
9	303882		Separator Assembly (includes Items 12, 13 & 22) See Note A.		Appelez-nous	-
10	3400001		Screw		Appelez-nous	-
11	675806		Impeller, Wash (includes Items 12 & 13)   (Replaces: 303510)			Immediately	$ 142.08
12	WP3371152		Screw & Seal,   (Replaces: 3371152)				$ 10.32
13	WP302711		Seal, Pump Outlet   (Replaces: 302711)				$ 39.87
14	3369478		Outlet, Pump (includes Item 13)		Appelez-nous	-
15	675238		Check Valve (includes Item 6)   (Replaces: 3369482)				$ 91.05
16	717000		Gasket, Pump				$ 78.98
17	3376752		Pump & Motor Assembly (includes Item 16)		Appelez-nous	-
18	302707		Bushing, Grind		Appelez-nous	-
19	675806		Chopper Kit (also Order Item 30) See Note A.   (Replaces: 302718)			Immediately	$ 142.08
20	302705		Sleeve, Drain Impeller		Appelez-nous	-
21	W11693756		Screw   (Replaces: 9741321)			Immediately	$ 14.76
22	302704		Seal, Drain Cover				$ 7.40
23	3378207		Cover, Drain (also Order Item 30) See Note A.		Appelez-nous	-
24	675806		Impeller, Drain Kit (also Order Item 30) See Note A.   (Replaces: 303539)			Immediately	$ 142.08
25	3376157		Base, Pump (also Order Item 30) See Note A.		Appelez-nous	-
26	3367197		Support, Pump Mounting (4)				$ 5.70
27	W10909679		Slinger (see Note A.)   (Replaces: 3368270)				$ 22.73
28	3376765		Motor (includes Item 27) (also Order Item 30) See Note A.		Appelez-nous	-
29	3369331		Screw		Appelez-nous	-
30	675505		Pump Seal Kit (includes Items 4, 12, 13 & 22)		Appelez-nous	-
31	303918		Tool, Pump Centering				$ 38.41
35	3374757		Shaft, Absorber		Appelez-nous	-
36	3374756		Weight, Absorber		Appelez-nous	-
37	3378083		Thermostat		Appelez-nous	-
38	3376723		Seal, O-ring				$ 7.19
39	3376358		Retainer Thermostat				$ 7.50
40	WP9740674		Gasket, Drain Cover   (Replaces: 9740674)				$ 8.22
