01 - Cover Sheet

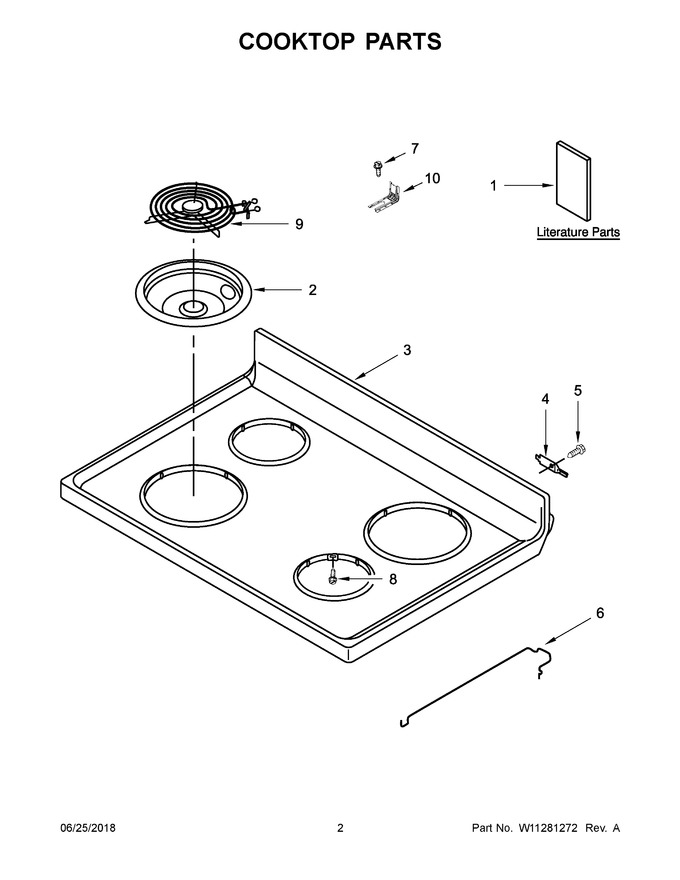

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11235906 | User Instructions |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6") (right Front And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 3 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 509.93 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 7 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 8 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 9 | W11396792 | Element, Coil Heating (1300w) (right Front And Left Rear) (Replaces: W11199519) |
|
Immediately | $ 100.51 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 1A | W11241252 | Diagram, Wiring |
|
- | |||||
| 1B | W10877842 | Instructions, Installation |
|
- | |||||
| 2A | WPW10196405 | Bowl, Drip (8") (left Front And Right Rear) (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 9A | W11396790 | Element, Coil Heating (2150w) (left Front And Right Rear) (Replaces: W11199518) |
|
Immediately | $ 102.17 | ||||
| NI | WPW10295595 | Harness, Cooktop (Replaces: W10295595) |
|
Immediately | $ 156.06 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10848997 | Harness, Wire (main) |
|
$ 167.63 | |||||
| NI | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 |
