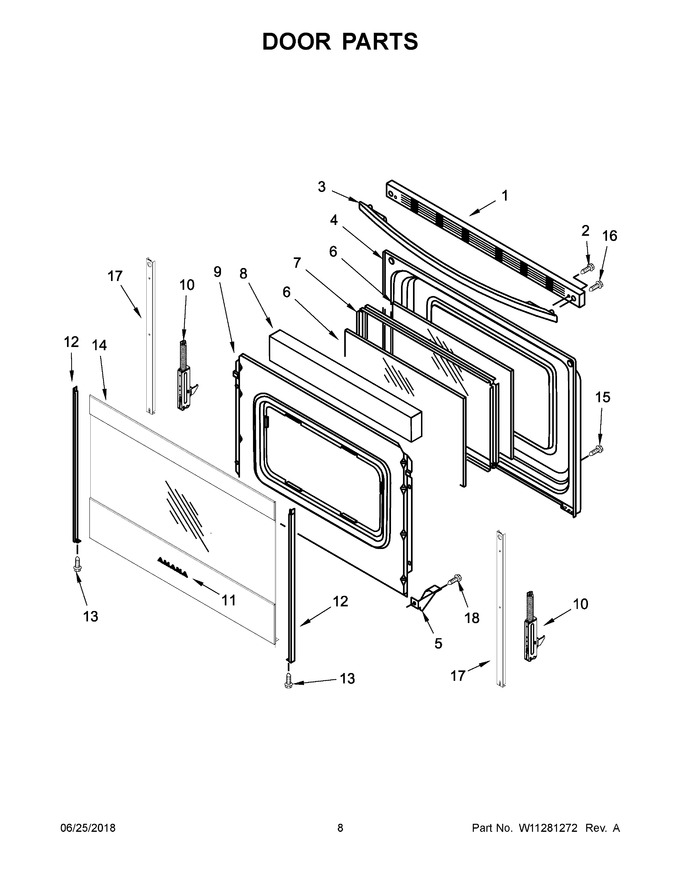

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 175.37
2	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
3	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	W10137382		Clip, Panel			Immediately	$ 48.42
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 233.31
10	WPW10299224		Hinge, Active (with Spring)   (Replaces: W10299224)			Immediately	$ 73.47
11	W11240541		Badge (stainless)   (Replaces: W10846752)			Immediately	$ 77.95
12	W10761014		Trim, Side Black (right)   (Replaces: W10746435)			Immediately	$ 72.96
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	W11244427		Door, Outer Glass Assembly (stainless)   (Replaces: W11167875)				$ 373.34
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
17	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 27.68
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
10A	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
12A	W10761018		Trim, Side Black (left)   (Replaces: W10746436)			Immediately	$ 53.77
