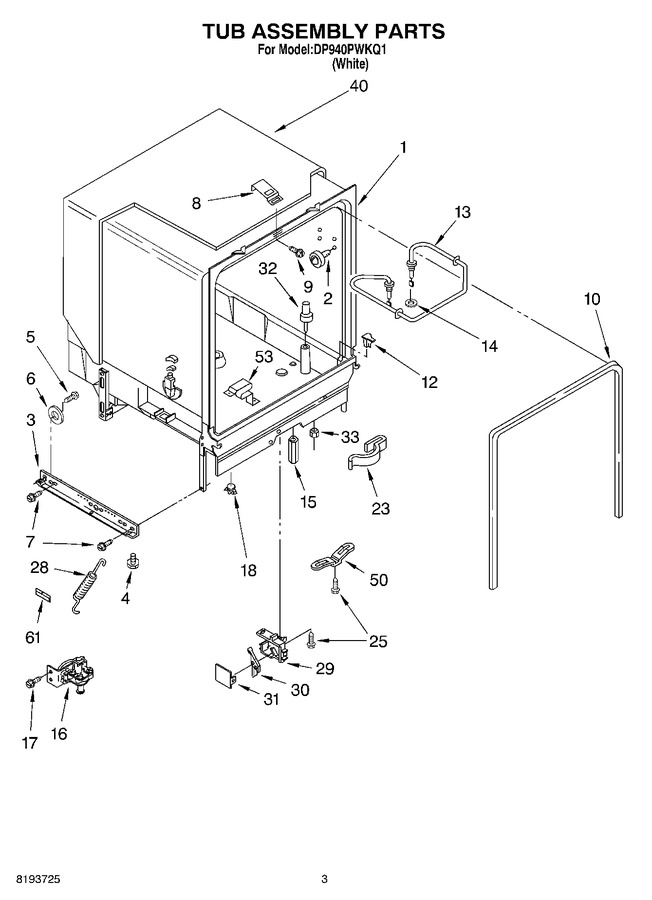

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3378160		Tub Assembly		Appelez-nous	-
2	WP8528831		Tub, Wheel Assembly (8)   (Replaces: 8528831)			Immediately	$ 17.61
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 84.72
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
12	WP8528862		Deflector (2)   (Replaces: 8528862)				$ 63.90
13	WPW10082896		Heater (includes Item 14)   (Replaces: 8519830)				$ 134.65
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.19
15	WPW10477552		Nut (2) (heater Terminal)   (Replaces: 8268548)			Immediately	$ 7.76
16	WP8274220		Water Valve   (Replaces: 8274220)				$ 212.84
17	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
18	WP661566		Thermostat, Hi-limit   (Replaces: 661566)			Immediately	$ 31.28
23	WP3400935		Clip   (Replaces: 3400935)				$ 9.71
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 7.75
28	WP3374343		Spring, Door   (Replaces: 3374343)			Immediately	$ 33.57
29	8318218		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	8318219		Cover, Switch Housing				$ 14.53
32	WP3376397		Float & Washer Assembly   (Replaces: 8519587)				$ 103.47
33	717488		Nut				$ 12.83
40	W11086533		Sound Shield, Tub   (Replaces: 8531031)			Immediately	$ 31.30
50	W10539489		Bracket, Thermostat   (Replaces: 3378595)				$ 19.18
53	3379740		Support, Heater				$ 51.56
61	8052018		Friction Pad		Appelez-nous	-
