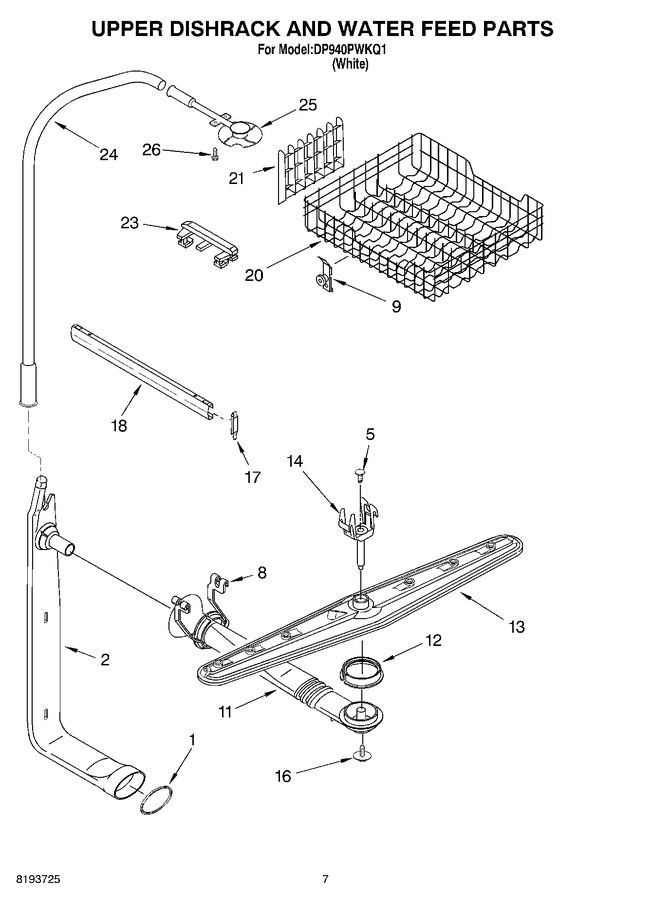

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9742953 | Seal, Tube |
|
$ 18.02 | |||||
| 2 | 661651 | Tube, Water |
|
Immediately | $ 141.84 | ||||
| 5 | WP3400919 | Plug (Replaces: 3400919) |
|
$ 11.20 | |||||
| 8 | WP3385160 | Hanger, Water Inlet (Replaces: 3385160) |
|
$ 38.61 | |||||
| 9 | WPW10204131 | Wheel Assembly (Replaces: 8268852) |
|
Immediately | $ 9.16 | ||||
| 11 | WPW10258149 | Manifold, Sprayarm (Replaces: 8268845) |
|
Immediately | $ 71.76 | ||||
| 12 | WP3376846 | Seal, Sprayarm (Replaces: 3376846) |
|
Immediately | $ 10.12 | ||||
| 13 | WP8519604 | Sprayarm, Upper (Replaces: 8519604) |
|
$ 83.83 | |||||
| 14 | WP3385159 | Mount (Replaces: 3385159) |
|
$ 104.02 | |||||
| 16 | WPW10349488 | Screw (Replaces: 3400031) |
|
$ 8.97 | |||||
| 17 | WP8565925 | Stop, Track (Replaces: 8524581) |
|
Immediately | $ 6.87 | ||||
| 18 | WP3385089 | Track, Dishrack (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 20 | W11169039 | Dishrack, Upper (Replaces: 8519572) |
|
Immediately | $ 203.14 | ||||
| 21 | WP8268828 | Cupshelf, Small (Replaces: 8268828) |
|
$ 135.89 | |||||
| 23 | 8268826 | Clip, Cupshelf |
|
$ 22.17 | |||||
| 24 | 9743958 | Tube, Feed |
|
$ 5.84 | |||||
| 25 | WP3379369 | Wash Assembly W/ Slinger (Replaces: 3379369) |
|
Immediately | $ 66.37 | ||||
| 26 | WP489443 | Screw (Replaces: 3400850) |
|
Immediately | $ 8.33 |
