SELECT A DIAGRAM

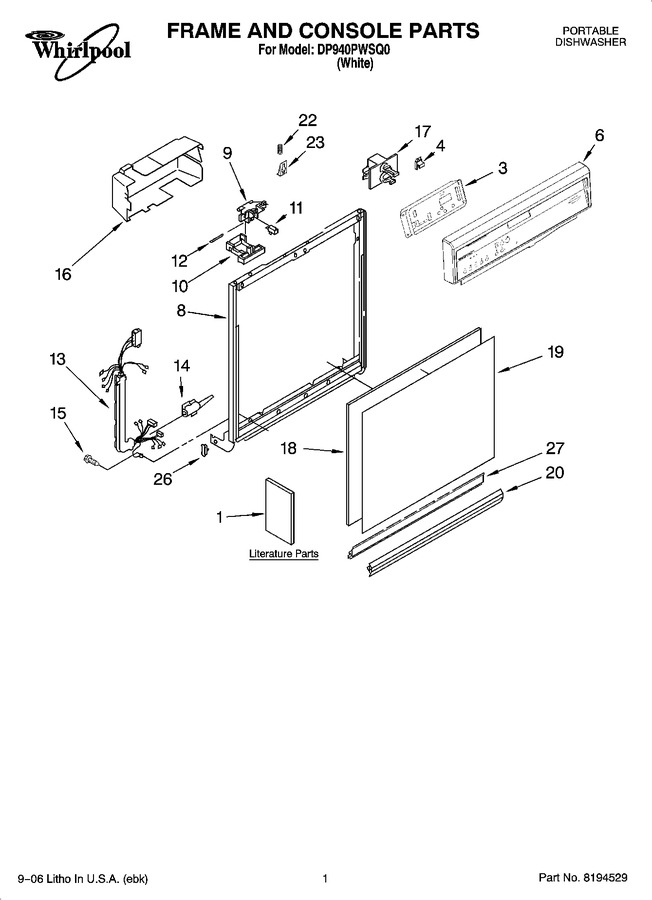

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Motor Parts


05 - Upper Dishrack And Water Feed Parts


06 - Cabinet Parts


07 - Lower Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10073390		Guide, Energy		Appelez-nous	-
1	W10073400		Guide, Use & Care		Appelez-nous	-
1	8535431		Tech Sheet English/french		Appelez-nous	-
1	8535418		Instructions, Installation		Appelez-nous	-
3	W10039780		Control, Electronic				$ 207.01
4	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 48.05
6	W10101940		Console (includes Insert & Active Overlay) (white)				$ 199.31
8	3374712		Door Frame (white)				$ 141.54
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8571335		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8051304		Cover, Timer		Appelez-nous	-
17	3374501		Motor, Dual				$ 45.99
18	3374777		Absorber, Sound		Appelez-nous	-
19	WP3369769		Panel, Front (white)   (Replaces: 3369769)				$ 59.42
20	3374011		Retainer, Panel				$ 59.30
22	675782		Spring, Door Catch   (Replaces: 3379358)				$ 9.90
23	675782		Catch, Door   (Replaces: 3379357)				$ 9.90
26	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
27	WP3374716		Channel, Retainer (also Order Item 20)   (Replaces: 3374716)				$ 100.22

    View Diagram in Separate Window       Print Part List
