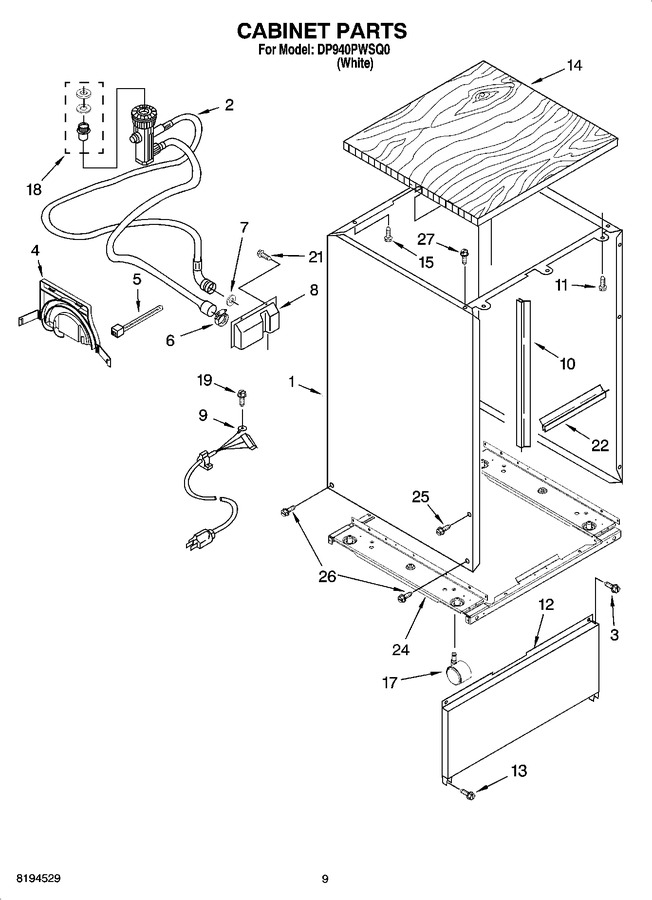

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3378111 | Shell Assembly (white) |
|
$ 261.95 | |||||
| 2 | WPW10273574 | Coupler Assembly (Replaces: 3378117) |
|
Immediately | $ 204.68 | ||||
| 3 | WP302868 | Screw (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 4 | 3378109 | Saddle, Hose |
|
- | |||||
| 5 | WPW10339879 | Clip, Strap (Replaces: 309330) |
|
$ 8.30 | |||||
| 6 | WP3367052 | Clamp, Hose (Replaces: 3367052) |
|
$ 9.10 | |||||
| 7 | WP16123 | Washer (Replaces: 16123) |
|
$ 8.16 | |||||
| 8 | 3371343 | Housing, Hose |
|
$ 44.36 | |||||
| 9 | W10831279 | Cord, Power (Replaces: 8566201) |
|
$ 151.24 | |||||
| 10 | 3378125 | Protector-edge, Divider |
|
- | |||||
| 11 | WP3373329 | Screw (Replaces: 3373329) |
|
$ 8.52 | |||||
| 12 | 3372381 | Shroud, Caster |
|
$ 67.74 | |||||
| 13 | 3370544 | Screw |
|
$ 8.06 | |||||
| 14 | WP3373199 | Panel, Top (Replaces: 3373199) |
|
$ 395.30 | |||||
| 15 | WP681414 | Screw (2) (Replaces: 304428) |
|
Immediately | $ 8.47 | ||||
| 17 | WP8559933 | Caster (Replaces: 8559932) |
|
Immediately | $ 103.49 | ||||
| 18 | 30168LF | Adapter Faucet (Replaces: 3374592) |
|
Immediately | $ 12.15 | ||||
| 19 | WP681414 | Screw (Replaces: 3372525) |
|
Immediately | $ 8.47 | ||||
| 21 | 3370826 | Screw (2) |
|
- | |||||
| 22 | 3378126 | Protector-edge, Divider |
|
- | |||||
| 24 | W10254984 | Frame, Assembly (Replaces: 8559928) |
|
$ 173.73 | |||||
| 25 | 3371635 | Screw, 8-18 X 1/2 |
|
- | |||||
| 26 | 3371644 | Screw, 8-18 X 5/8 |
|
$ 8.65 | |||||
| 27 | 302251 | Screw |
|
- |
