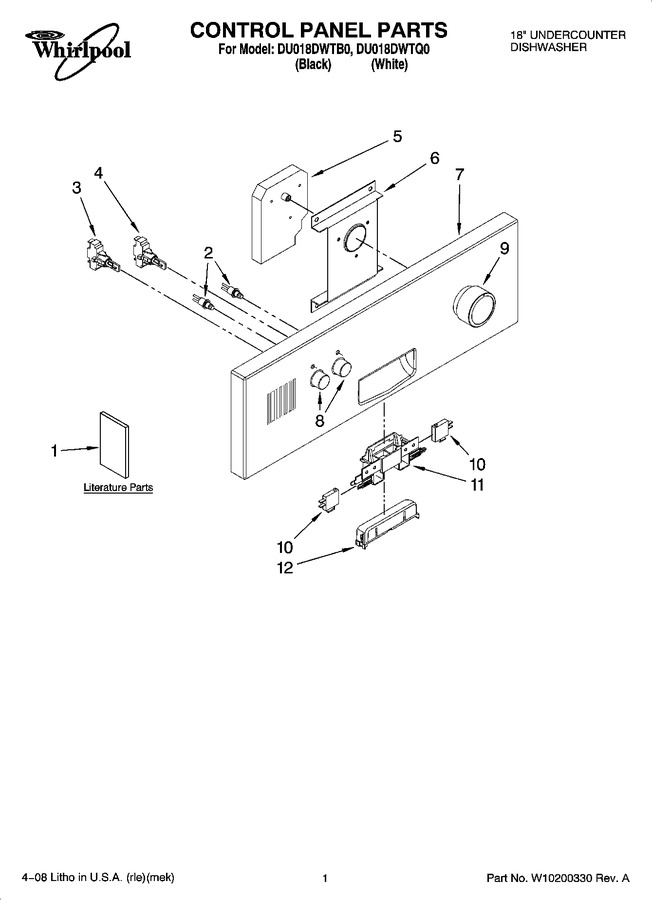

01 - Control Panel Parts
02 - Tub Parts
03 - Door And Toe Panel Parts
04 - Frame Parts
05 - Pump And Sprayarm Parts
06 - Dishrack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142955B | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10159943A | Instructions, Installation (spanish) |
|
- | |||||
| 1 | W10102499B | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10200373 | Guide, Energy |
|
- | |||||
| 1 | W10102500A | Instructions, Installation (english/french) |
|
- | |||||
| 2 | W10181605 | Light, Indicator |
|
- | |||||
| 3 | W10181607 | Switch, On/off |
|
- | |||||
| 4 | W10181608 | Switch, Heat Dry |
|
- | |||||
| 5 | W10181611 | Timer |
|
- | |||||
| 6 | W10181612 | Cover, Timer |
|
- | |||||
| 7 | W10200367 | Panel, Control (white) |
|
- | |||||
| 7 | W10181614 | Panel, Control (black) |
|
- | |||||
| 8 | W10200364 | Button (white) |
|
- | |||||
| 8 | W10181609 | Button (black) |
|
- | |||||
| 9 | W10181613 | Knob (black) |
|
- | |||||
| 9 | W10200366 | Knob (white) |
|
$ 32.95 | |||||
| 10 | W10181604 | Switch |
|
- | |||||
| 11 | W10181606 | Latch |
|
$ 44.66 | |||||
| 12 | W10200365 | Handle (white) |
|
- | |||||
| 12 | W10181610 | Handle (black) |
|
$ 80.18 |
