01 - Control Panel Parts
02 - Tub Parts
03 - Door And Toe Panel Parts
04 - Frame Parts
05 - Pump And Sprayarm Parts
06 - Dishrack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

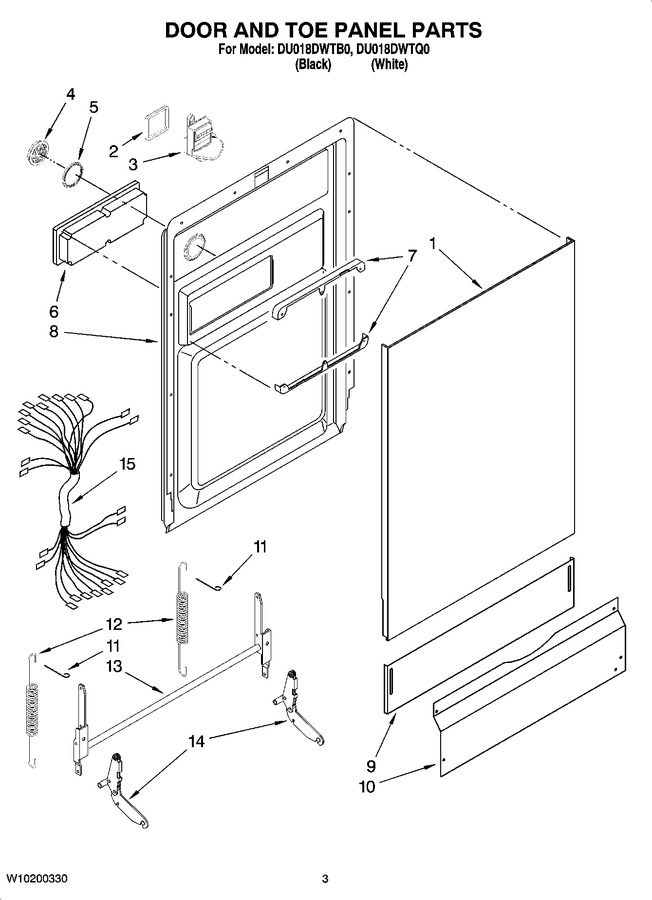

| 1 | W10181615 | Panel, Door (black) |
|
- | |||||
| 1 | W10199985 | Panel, Door (white) |
|
- | |||||
| 2 | W10181602 | Gasket, Vent |
|
- | |||||
| 3 | W10181603 | Vent |
|
- | |||||
| 4 | W10181600 | Deflector |
|
- | |||||
| 5 | W10181554 | Gasket |
|
- | |||||
| 6 | W10181617 | Dispenser |
|
$ 191.35 | |||||
| 7 | W10181616 | Bracket Dispenser |
|
- | |||||
| 8 | W10181599 | Inner, Door |
|
$ 297.14 | |||||
| 9 | W10200179 | Panel, Toe (white) |
|
- | |||||
| 9 | W10181593 | Panel, Toe (black) |
|
- | |||||
| 10 | W10181594 | Panel, Access (black) |
|
- | |||||
| 10 | W10200180 | Panel, Access (white) |
|
- | |||||
| 11 | W10181623 | Pin |
|
- | |||||
| 12 | W10181618 | Spring, Door |
|
- | |||||
| 13 | W10181620 | Hinge, Bracket |
|
- | |||||
| 14 | W10181621 | Hinge, Door (left) |
|
- | |||||
| 14 | W10181622 | Hinge, Door (right) |
|
- | |||||
| 15 | W10181633 | Wiring, Harness |
|
- |
