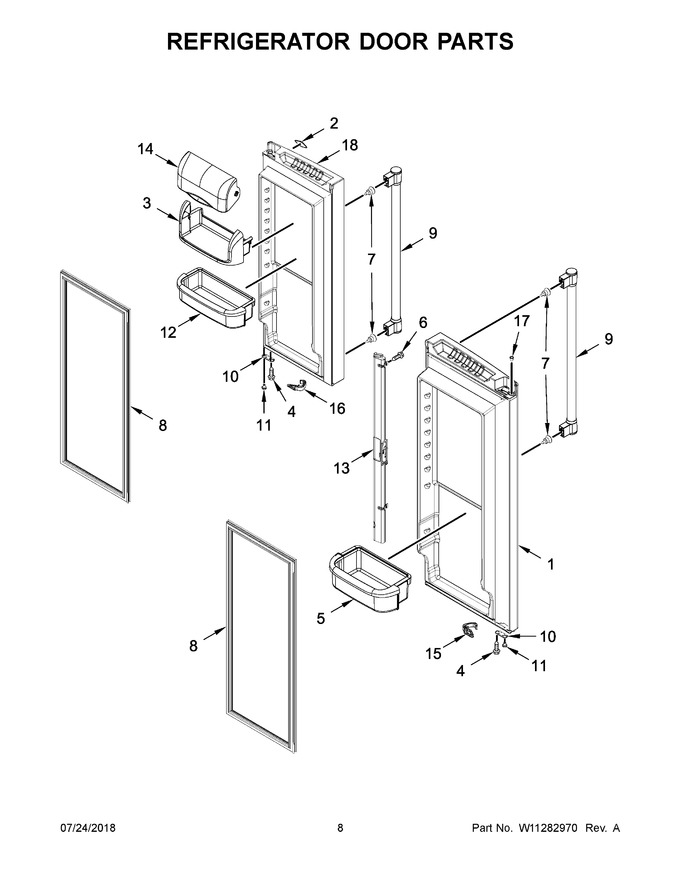

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11307258 | Door, Refrigerator (stainless) (Replaces: W11254613) |
|
$ 1,009.28 | |||||
| 2 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 37.71 | ||||
| 3 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 73.55 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 | ||||
| 9 | W10879677 | Handle, Door (stainless) (Replaces: W10838130) |
|
Immediately | $ 205.16 | ||||
| 10 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 14.72 | |||||
| 11 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 12 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 77.23 | ||||
| 13 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 177.93 | ||||
| 14 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 15 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 16.80 | |||||
| 16 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 16.80 | ||||
| 17 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 18 | W11307263 | Door, Refrigerator (stainless) (Replaces: W11254623) |
|
$ 1,004.67 |
