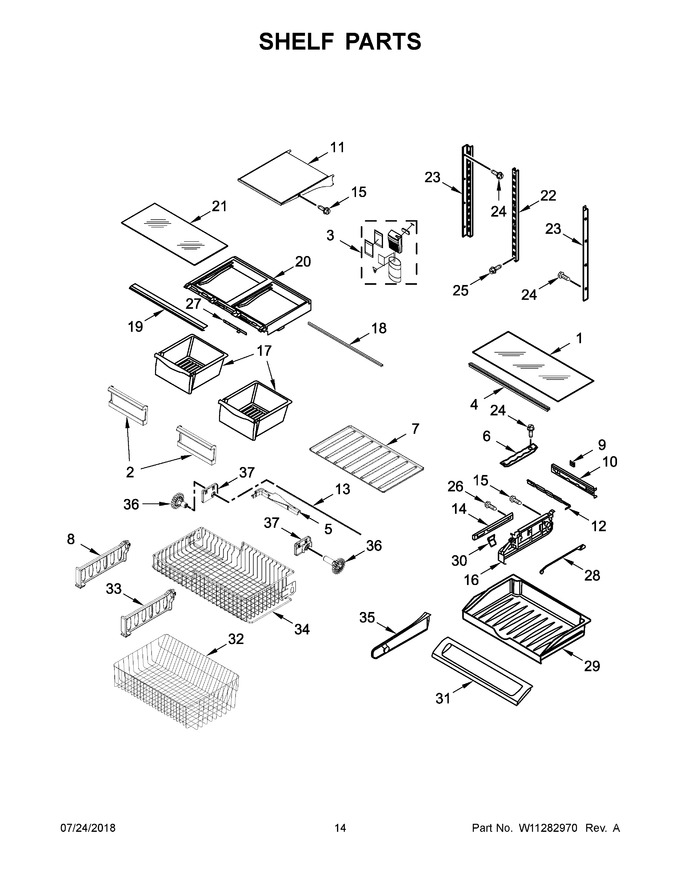

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11125512 | Glass, Pantry (Replaces: W10893771) |
|
Immediately | $ 241.01 | ||||
| 2 | WP67005923 | Front, Crisper Pan (Replaces: 12802602SP) |
|
$ 75.36 | |||||
| 3 | W10596756 | Assembly, Produce Preserver |
|
- | |||||
| 4 | W10528933 | Support, Glass (includes Pantry Brace) |
|
Immediately | $ 84.93 | ||||
| 5 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 88.25 | |||||
| 6 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 7 | WP12727304 | Tray, Lower Basket (Replaces: 12727304) |
|
$ 113.81 | |||||
| 8 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 27.80 | ||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 21.04 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 141.75 | |||||
| 11 | W11026424 | Assembly, Shelf (Replaces: W10878956) |
|
Immediately | $ 230.80 | ||||
| 12 | WP67003793 | Slide, Temperature Control (Replaces: 12655402) |
|
Immediately | $ 74.75 | ||||
| 13 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 30.84 | |||||
| 14 | WPW10235370 | Glide, Pantry (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 16 | WP12656105 | Endcap, Pantry (left Hand) (Replaces: 12656105) |
|
Immediately | $ 55.63 | ||||
| 17 | WP67002659 | Pan, Crisper (Replaces: 12531105SP) |
|
Immediately | $ 147.67 | ||||
| 18 | W10832723 | Brace, Crisper Cover |
|
$ 91.17 | |||||
| 19 | WPW10231485 | Trim, Crisper (Replaces: W10231485N) |
|
$ 105.37 | |||||
| 20 | WP67006185 | Frame, Crisper (Replaces: 12531202SP) |
|
$ 216.05 | |||||
| 21 | WP67006655 | Glass, Crisper (Replaces: 12204821) |
|
Immediately | $ 228.45 | ||||
| 22 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 23 | WPW10569182 | Ladder, Side (Replaces: W10569182) |
|
$ 27.59 | |||||
| 24 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 25 | W10215666 | Screw |
|
$ 9.08 | |||||
| 26 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.80 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 28 | 67003794 | Bar, Temperature Control (Replaces: 12655303) |
|
$ 13.16 | |||||
| 29 | W11490183 | Drawer, Pantry (Replaces: 12655702) |
|
$ 137.42 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 12655204) |
|
$ 29.18 | |||||
| 31 | W10827015 | Lid, Pantry (Replaces: 12656813) |
|
Immediately | $ 175.81 | ||||
| 32 | W11125514 | Basket, Lower (Replaces: W11115782) |
|
$ 131.27 | |||||
| 33 | W10150061 | Divider, Basket (lower) |
|
$ 85.08 | |||||
| 34 | W11268538 | Basket, Freezer (upper) (Replaces: W11115548) |
|
Immediately | $ 189.95 | ||||
| 35 | WP67002321 | Divider, Pantry (Replaces: 12709301) |
|
$ 32.18 | |||||
| 36 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 30.88 | ||||
| 37 | W10348259 | Mount, Gear (left Hand) |
|
$ 85.59 | |||||
| 16A | WP12656018 | Endcap, Pantry (right Hand) (Replaces: 12656018) |
|
Immediately | $ 58.87 | ||||
| 36A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 31.20 | ||||
| 37A | W10348260 | Mount, Gear (right Hand) |
|
$ 85.62 |
