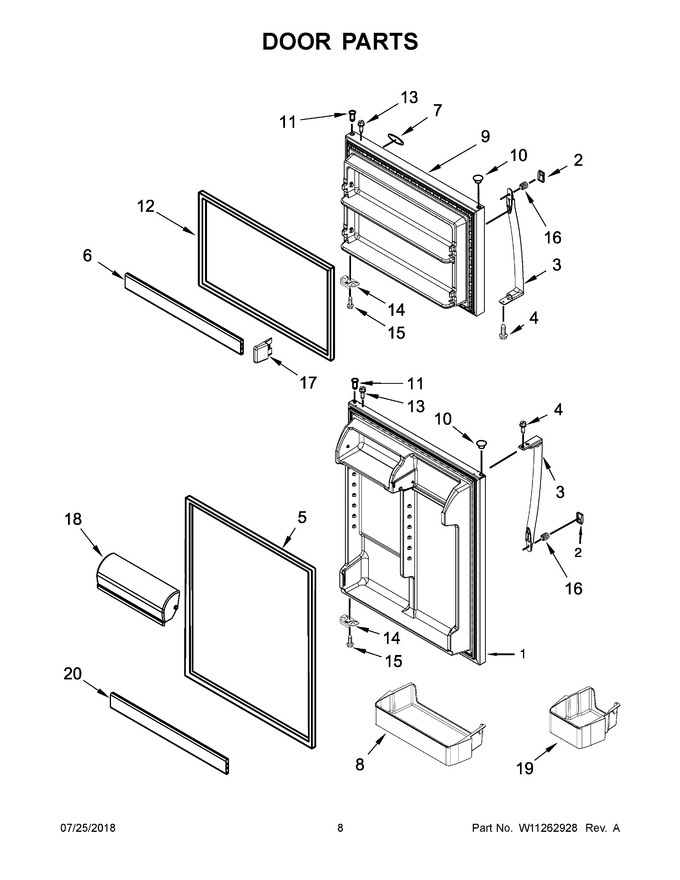

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10856289		Refrigerator Door (includes Illustration 5) (stainless)   (Replaces: W10856289)				$ 800.05
2	W10917259		Handle, Trim (grey)   (Replaces: W10864207)			Immediately	$ 59.13
3	W10837029		Handle, Door (stainless)   (Replaces: W10653471)			Immediately	$ 188.68
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	W10249195		Door Gasket, Magnetic (grey)   (Replaces: W10171475)				$ 335.80
6	W10592150		Trim, Door				$ 125.96
7	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
8	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 89.09
9	LW10856291		Freezer Door (includes Illustration 12) (stainless)   (Replaces: W10856291)				$ 762.67
10	W10830982		Hole Plug (grey)   (Replaces: W10663739)			Immediately	$ 19.54
11	W11189115		Thimble (black)   (Replaces: W10334042)				$ 12.71
12	W10249196		Door Gasket, Magnetic (grey)   (Replaces: W10171479)			Immediately	$ 279.10
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
16	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 16.11
17	W10838039		Cap, Trim End   (Replaces: W10592153)			Immediately	$ 55.68
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
19	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 72.18
20	W11126062		Trim, Door   (Replaces: W10592148)				$ 127.34
