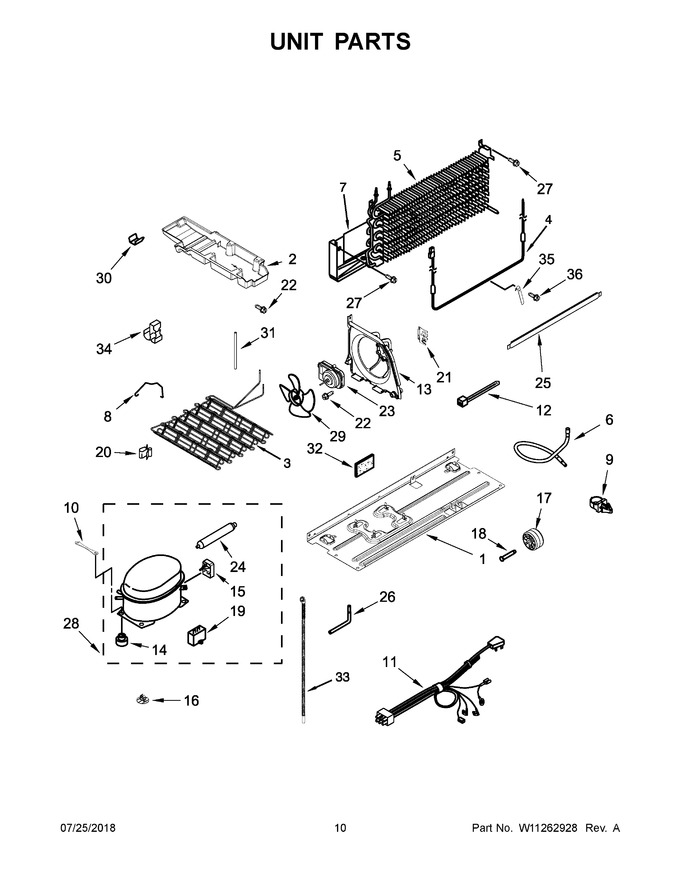

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Baseplate (Replaces: W10300118) |
|
$ 140.15 | |||||
| 2 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 151.95 | |||||
| 3 | W10609393 | Condenser |
|
$ 218.10 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 5 | W10836706 | Assembly, Evaporator (Replaces: W10570565) |
|
Immediately | $ 287.38 | ||||
| 6 | W10510988 | Tube, Suction |
|
$ 64.37 | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 9 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 10 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 11 | W11625681 | Harness, Unit (Replaces: W10410814) |
|
$ 113.83 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | W11500918 | Baffle, Air (Replaces: W10609392) |
|
- | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 136.08 | ||||
| 16 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | W11179313 | Capacitor (Replaces: W10590088) |
|
$ 122.39 | |||||
| 20 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 23.44 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 24 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 57.13 | ||||
| 25 | W10300902 | Cover, Heater |
|
$ 29.57 | |||||
| 26 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 108.61 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 28 | W10233960 | Compressor (Replaces: W10575980) |
|
Immediately | $ 539.34 | ||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 101.49 | ||||
| 30 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 31 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 65.56 | ||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 33 | W10475011 | Tube, Drain |
|
$ 31.78 | |||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 35 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 20.12 | |||||
| 36 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| NI | N/P | Refrigerant Charge 5.0 Oz. (r-134a) |
|
- | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 |
