SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard

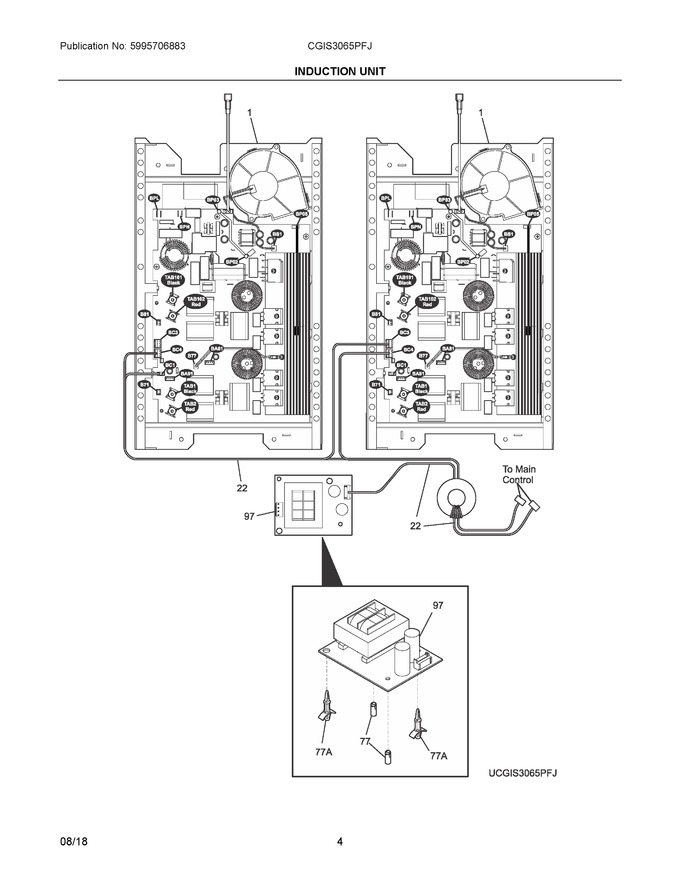

03 - Induction Unit
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903160-9010 | Housing Assembly, Induction, Generator, W/electronics (Replaces: 318416100) |
|
Immediately | $ 909.37 | ||||
| 22 | 5304517795 | Harness-bg Comm Gene E Es530 |
|
$ 125.55 | |||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 49.61 | |||||
| 97 | 316435705 | Board, Power Supply |
|
$ 440.61 | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 6.30 | |||||
| NI | 5304517793 | Harness-generator 30 Si S6st |
|
$ 73.24 | |||||
| NIA | 5304517787 | Harness-bg Comm E Es530/575 |
|
$ 30.35 |
