SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Induction Unit

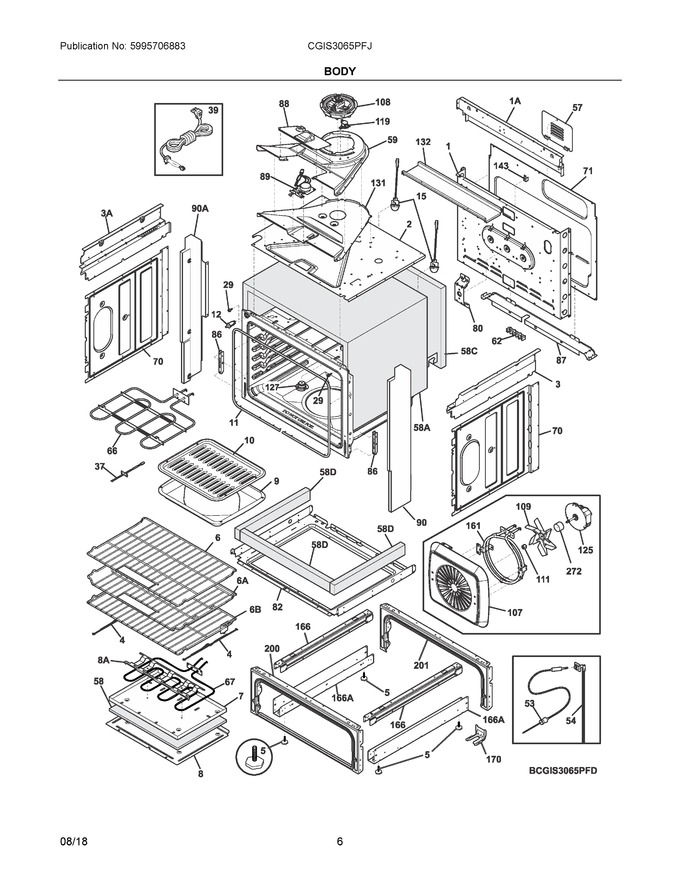

04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017310		Panel, Main Back		Appelez-nous	-
2	139028100		Shield, Insulation, Top		Appelez-nous	-
3	139087301		Panel, Side, Upper Rh		Appelez-nous	-
4	318927600		Support, Auto Rack, (2)				$ 23.25
5	316498903		Leveling Leg				$ 13.48
6	5304514983		Rack, Oven, W/handle				$ 137.58
7	318297303		Box, Bake Element				$ 139.82
8	318359500		Panel, Service				$ 155.66
9	318138801		Pan, Broiler, Optional Accessory		Appelez-nous	-
10	318126401		Insert, Broiler Pan, Optional Accessory		Appelez-nous	-
11	807545502		Seal, Oven Door, Gray				$ 155.93
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 22.84
29	316517600		Bumper, Front, Main				$ 13.39
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
39	318113111		Cord, Electric				$ 95.55
53	5304504202		Probe, Meat Temp, Red   (Replaces: 5304514885)			Immediately	$ 117.99
54	5304517721		Receptacle Assy, Meat Probe				$ 80.33
57	316283600		Cover, Access				$ 13.89
58	318294912		Insullation, Bake Element				$ 107.97
59	139027600		Duct, Cooling Fan, Upper				$ 95.29
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521498		Element, Broil, 6 Pass, 3400w   (Replaces: 139008900)			Immediately	$ 96.90
67	5304521880		Element, Bake, 2500w, 8 Pass   (Replaces: 139026700)			Immediately	$ 127.74
70	139000601		Shield, Insulation, Sides, (2)				$ 80.05
71	139014001		Shield, Rear Wall, Lower				$ 70.88
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	139008201		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 23.59
87	318260625		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 26.78
89	139078302		Motor, Latch Assembly			Immediately	$ 118.56
90	5304511889		Panel, Filler, Black, Rh				$ 82.69
107	139013903		Cover, Convection Fan				$ 52.07
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 218.45
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
119	807144901		Thermostat, Safety, 110c Deg				$ 64.88
125	139008500		Motor, Convection Fan			Immediately	$ 240.25
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 11.14
131	139027700		Duct, Cooling Fan, Lower				$ 81.11
132	318404704		Duct, Air				$ 81.17
143	318172904		Support, Wire		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 52.92
166	318298410		Bracket, Base Support, (2)				$ 84.26
170	5304486410		Kit, Anti Tip, W/brkt & Instru				$ 176.11
200	318298232		Frame, Drawer, Black, Front				$ 95.13
201	318298233		Frame, Drawer, Black, Rear				$ 50.40
272	139021700		Tube, Convection Fan				$ 19.69
166A	5304511884		Bracket, Base Support, Lower				$ 73.31
1A	139004600		Panel, Main Back, Upper				$ 75.13
3A	139087300		Panel, Side, Upper Lh		Appelez-nous	-
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58C	139020202		Insulation, Oven Back				$ 44.46
58D	139020301		Insulation, Sides, (2)		Appelez-nous	-
6A	139012400		Rack, Oven, Offset, W/handle				$ 181.34
6B	139013101		Rack, Auto				$ 176.96
8A	318313601		Bracket, Bake Element				$ 71.45
90A	5304511890		Panel, Filler, Black, Lh				$ 90.16
NI	5304517813		Harness-capacitor Asm				$ 39.38
NI	316581300		Retainer, Wire				$ 4.73
NI	318531701		Spacer				$ 13.39
NI	5304517788		Harness-main E Es530 S6st				$ 167.74
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 10.24
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 67.15
NIA	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60

    View Diagram in Separate Window       Print Part List
