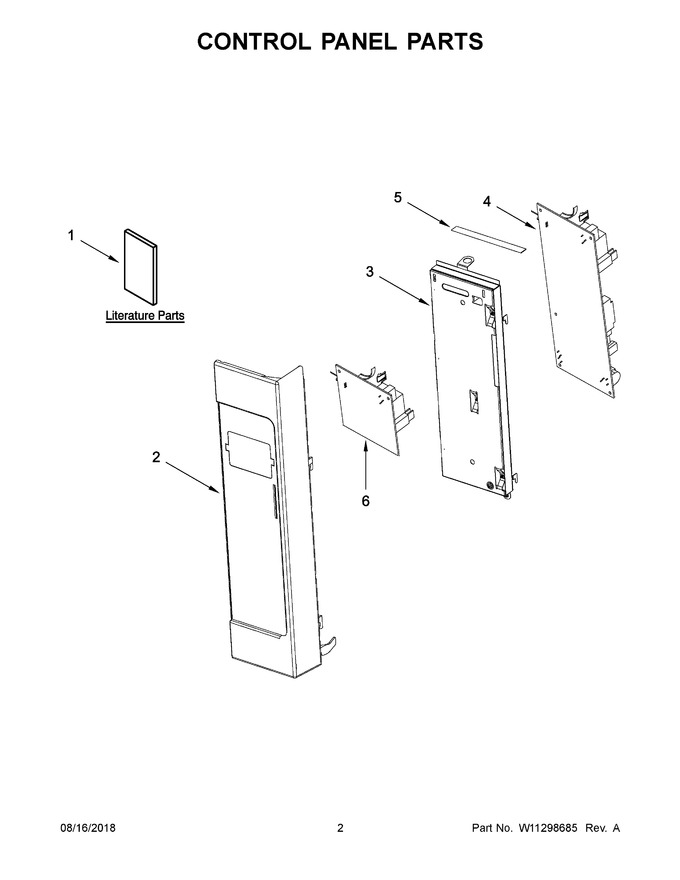

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10724871 | Installation Instructions |
|
- | |||||
| 2 | W10871384 | Assembly, Control Panel (stainless) |
|
$ 374.25 | |||||
| 3 | W10540727 | Background, Control |
|
$ 35.62 | |||||
| 4 | W11435658 | Pcba, Appliance Control Unit (Replaces: W10881548) |
|
Immediately | $ 206.27 | ||||
| 5 | W10540721 | Seal, Control |
|
$ 27.56 | |||||
| 6 | W11416048 | Pcba, User Interface (Replaces: W10881547) |
|
Immediately | $ 270.45 | ||||
| 1A | W10847765 | Use And Care Guide |
|
- | |||||
| 1B | W10662685 | Quick Reference Guide |
|
- | |||||
| 1C | W11193641 | Tech Sheet |
|
- |
