SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts

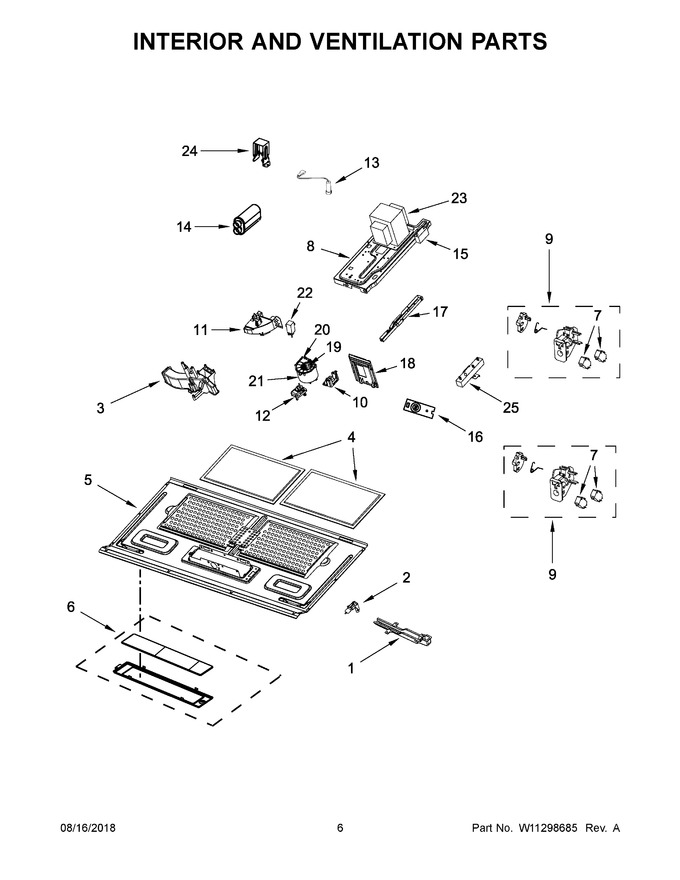

04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10570212		Air Duct, Turntable Motor		Appelez-nous	-
2	W10709921		Lamp, Halogen			Immediately	$ 21.22
3	W10758887		Assembly, Airguide Grille		Appelez-nous	-
4	W10535950		Filter, Grease			Immediately	$ 31.00
5	W10571126		Plate, Bottom				$ 95.78
6	W10240330		Assembly, Lamp Glass And Holder				$ 7.55
7	N/P		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
8	W10908577		Plate, Component		Appelez-nous	-
9	W11197766		Assembly, Interlock (includes Switches)   (Replaces: W11187757)			Immediately	$ 36.80
10	W10533480		Holder, Ntc				$ 24.77
11	W10533104		Air Guide, Magnetron		Appelez-nous	-
12	W11230994		Motor, Cooling Fan   (Replaces: W11169357)			Immediately	$ 201.13
13	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 34.86
14	W10654462		Capacitor, High Voltage			Immediately	$ 51.02
15	W11405831		Capacitor, Hood Motor   (Replaces: W10605897)				$ 44.36
16	W10536989		Thermistor, Pcba			Immediately	$ 38.68
17	W10540718		Bracket, Cavity				$ 32.61
18	W10533107		Deflector, Air		Appelez-nous	-
19	W10533503		Wheel, Cooling Fan				$ 34.14
20	W10533502		Cover, Cooling Fan				$ 26.49
21	W10533501		Housing, Cooling Fan			Immediately	$ 31.75
22	W10458325		Actuator				$ 97.42
23	W11371718		Transformer, High Voltage   (Replaces: W11087316)				$ 375.00
24	W10633730		Bracket, Capacitor		Appelez-nous	-
25	W10568805		Resistor, Cement				$ 29.04

    View Diagram in Separate Window       Print Part List
