01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

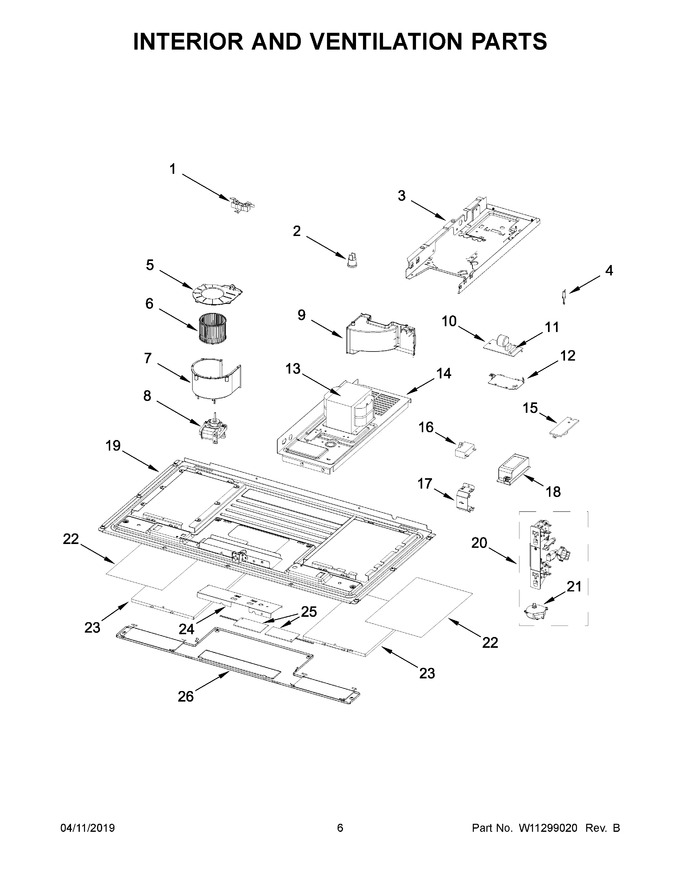

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11122225 | Resistor, Cement |
|
$ 38.16 | |||||
| 2 | W11213317 | Thermostat, Cavity (Replaces: W11125677) |
|
$ 92.22 | |||||
| 3 | W11086279 | Plate, Chassis |
|
- | |||||
| 4 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 5 | W11752349 | Cover, Cooling Fan (Replaces: W11088345) |
|
$ 28.34 | |||||
| 6 | W11088354 | Wheel, Cooling Fan |
|
Immediately | $ 100.03 | ||||
| 7 | W11213349 | Housing, Cooling Fan (Replaces: W11088352) |
|
$ 81.13 | |||||
| 8 | W11443154 | Motor, Cooling Fan (Replaces: W10920843) |
|
Immediately | $ 93.05 | ||||
| 9 | W11088358 | Air Guide, Magnetron |
|
- | |||||
| 10 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 56.88 | ||||
| 11 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 12 | W10313274 | Bracket, Noise Filter |
|
$ 32.32 | |||||
| 13 | W11024976 | Transformer, High Voltage |
|
Immediately | $ 213.23 | ||||
| 14 | W11164809 | Chassis, Transformer |
|
$ 130.06 | |||||
| 15 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 38.68 | ||||
| 16 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 195.87 | |||||
| 17 | W11095808 | Bracket, Capacitor |
|
- | |||||
| 18 | W11117966 | Driver, Led Lamp |
|
- | |||||
| 19 | W11159942 | Plate, Bottom |
|
Immediately | $ 146.71 | ||||
| 20 | W11244495 | Assembly, Interlock Switch (Replaces: W11241958) |
|
Immediately | $ 67.82 | ||||
| 21 | W11545873 | Motor, Door Eject (Replaces: W11044953) |
|
Immediately | $ 42.71 | ||||
| 22 | W11282981 | Filter, Charcoal (Replaces: W11223147) |
|
Immediately | $ 22.75 | ||||
| 23 | W11230008 | Filter, Grease (Replaces: W11122183) |
|
Immediately | $ 77.16 | ||||
| 24 | W11086295 | Reflector, Lamp |
|
$ 78.51 | |||||
| 25 | W11048310 | Board, Led Lamp |
|
Immediately | $ 93.25 | ||||
| 26 | W11227005 | Assembly, Glass Holder |
|
- |
