01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

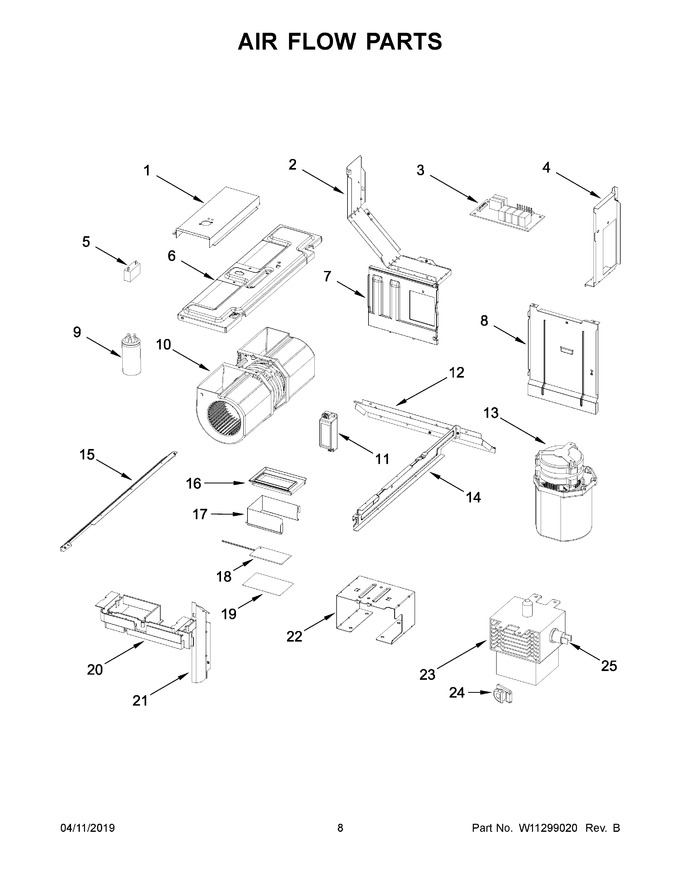

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11095818 | Outlet, Cavity (back) |
|
$ 173.34 | |||||
| 2 | W11095827 | Air Deflector, Right |
|
- | |||||
| 3 | W11133802 | Pcba, Hood Control |
|
$ 44.48 | |||||
| 4 | W11095824 | Outlet Deflector, Right |
|
$ 78.76 | |||||
| 5 | W11405831 | Capacitor, Hood Motor (Replaces: W10605897) |
|
$ 44.36 | |||||
| 6 | W11086272 | Chassis, Fan |
|
- | |||||
| 7 | W11095794 | Deflector, Cooling Fan |
|
- | |||||
| 8 | W11095804 | Hood Deflector, Right |
|
- | |||||
| 9 | W10557536 | Sensor, Humidity |
|
$ 127.30 | |||||
| 10 | W11409093 | Motor, Hood (Replaces: W11083237) |
|
Immediately | $ 192.43 | ||||
| 11 | W11117964 | Driver, Led Lamp |
|
$ 369.11 | |||||
| 12 | W11096432 | Hood Deflector, Back |
|
- | |||||
| 13 | W11213353 | Hood Motor, Single (Replaces: W11039275) |
|
Immediately | $ 212.72 | ||||
| 14 | W11095814 | Divider, Air |
|
- | |||||
| 15 | W11095830 | Air Guide, Left |
|
- | |||||
| 16 | W11178702 | Seal, Lighting |
|
- | |||||
| 17 | W11086300 | Housing, Cavity Lighting |
|
- | |||||
| 18 | W11048293 | Board, Led Lamp |
|
$ 47.42 | |||||
| 19 | W11186948 | Foil, Lamp |
|
$ 78.81 | |||||
| 20 | W11099491 | Holder, Wire |
|
- | |||||
| 21 | W11095828 | Channel, Hood Back |
|
- | |||||
| 22 | W11127425 | Housing, Transformer |
|
$ 79.46 | |||||
| 23 | W11402082 | Magnetron (Replaces: W11115131) |
|
Immediately | $ 379.64 | ||||
| 24 | W11126543 | Seal, Rubber |
|
- | |||||
| 25 | W11125676 | Thermostat, Magnetron |
|
$ 91.80 |
