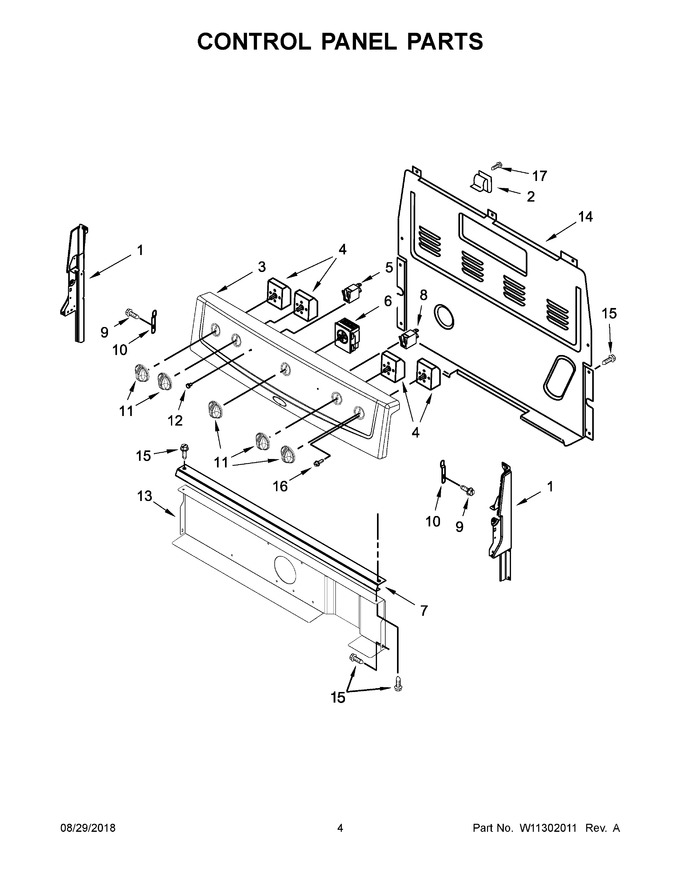

03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 42.45 | |||||
| 2 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 3 | W11263359 | Panel, Backguard (white) (Replaces: W11134308) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (green) (left Front And Right Rear) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP9762215 | Control, Electric (Replaces: 9762215) |
|
Immediately | $ 365.17 | ||||
| 7 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 8 | WP8523266 | Indicator, Light (250v) (Replaces: 8523266) |
|
$ 117.50 | |||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 11 | W11188750 | Knob, Control (white) (Replaces: W10844800) |
|
$ 21.54 | |||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 13 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 14 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 15 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 1A | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 60.83 | |||||
| 4A | 5500-287 | Switch, Infinite (right Front And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 |
