View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

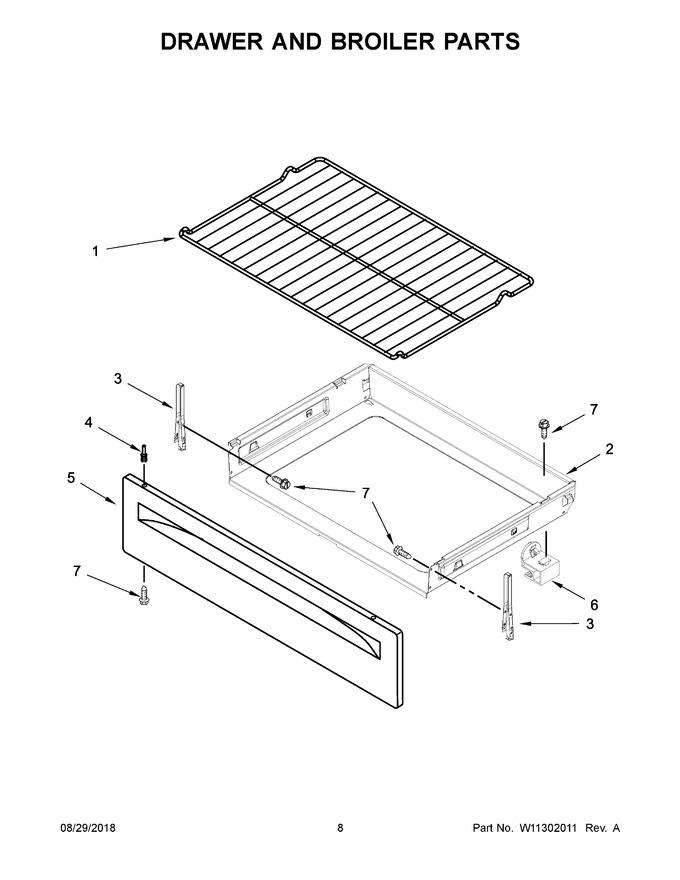

05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 3 | WPW10462912 | Bracket, Mounting Drawer (Replaces: W10462912) |
|
Immediately | $ 133.76 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 5 | W11219377 | Panel, Drawer Front (white) (Replaces: W11123901) |
|
$ 212.57 | |||||
| 6 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 19.47 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
