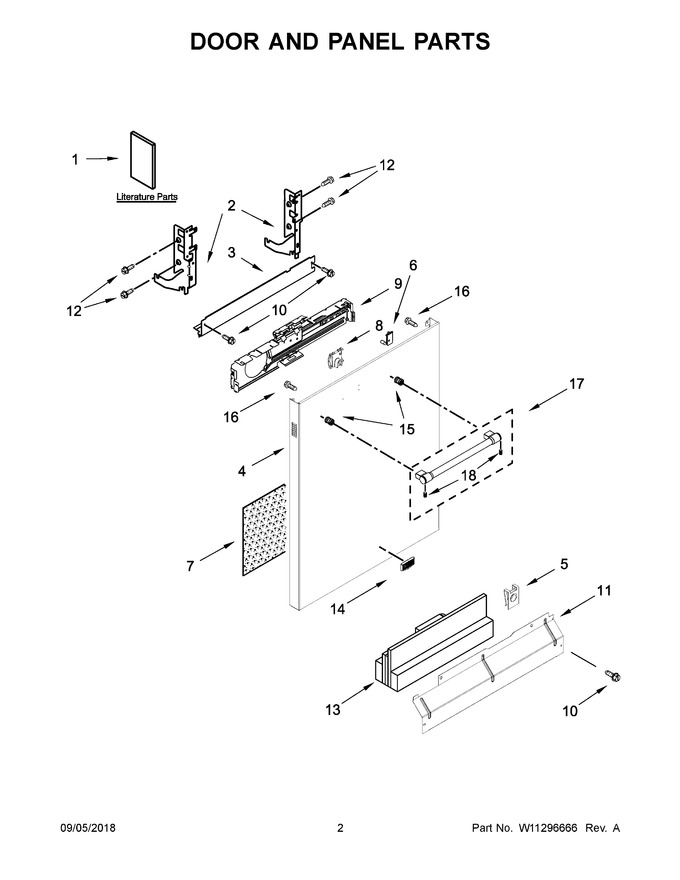

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W11334042		Panel Front (includes Items 6 & 8) (stainless)   (Replaces: W11218756)				$ 401.28
5	W10910629		U-nut   (Replaces: W10853886)				$ 8.64
6	W10901145		Light Pipe   (Replaces: W10854504)				$ 77.23
7	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
8	W10692757		Barrel Nut, Front Panel				$ 16.01
9	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
11	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 42.25
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
14	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
15	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
16	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
17	W11094492		Handle Assembly (stainless)			Immediately	$ 174.24
18	W10917698		Set Screw   (Replaces: W10687133)			Immediately	$ 7.55
1A	W11236381		Energy Guide		Appelez-nous	-
1B	W11172665		Use & Care Guide		Appelez-nous	-
1C	W10867183		Tech Sheet, English		Appelez-nous	-
1D	W10867186		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
