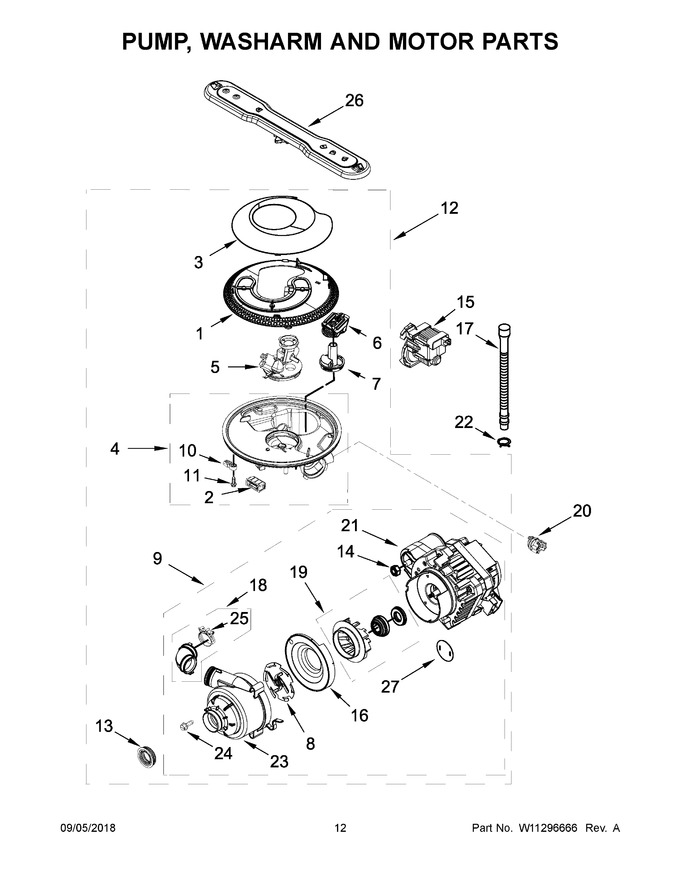

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11205078 | Accumulator Assembly (Replaces: W10591545) |
|
Immediately | $ 122.77 | ||||
| 2 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 14.57 | |||||
| 3 | W10736968 | Cover, Accumulator |
|
$ 61.33 | |||||
| 4 | WPW10482462 | Sump With Seal (also Order Items 13 & 18) (Replaces: W10482462) |
|
Immediately | $ 274.06 | ||||
| 5 | W11747583 | Cover, Outlet (Replaces: W10463892) |
|
$ 29.52 | |||||
| 6 | W10591547 | Protector, Inlet |
|
$ 38.20 | |||||
| 7 | W11661859 | Adapter, Drain (Replaces: W10591540) |
|
Immediately | $ 23.18 | ||||
| 8 | W11246682 | Chopper Assembly (Replaces: W10591562) |
|
Immediately | $ 82.82 | ||||
| 9 | W10815709 | Motor Assembly (also Order Item 13) (Replaces: W10591569) |
|
Immediately | $ 353.71 | ||||
| 10 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 29.36 | ||||
| 11 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 12 | WPW10591570 | Sump & Motor Assembly (Replaces: W10591570) |
|
Immediately | $ 441.68 | ||||
| 13 | WPW10538166 | Grommet (Replaces: W10538166) |
|
Immediately | $ 44.37 | ||||
| 14 | 8533949 | Nut |
|
$ 86.78 | |||||
| 15 | WPW10348269 | Pump, Drain (Replaces: W10348269) |
|
Immediately | $ 97.46 | ||||
| 16 | W10591561 | Enclosure, Motor |
|
$ 31.90 | |||||
| 17 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 18 | W10445975 | Hose Assembly (includes 2 Clamps) |
|
Immediately | $ 85.38 | ||||
| 19 | W10685075 | Impeller Assembly (Replaces: W10591558) |
|
Immediately | $ 48.05 | ||||
| 20 | W11084121 | Indicator, Optical Wash (Replaces: W10723295) |
|
Immediately | $ 66.47 | ||||
| 21 | W11662065 | Capacitor (Replaces: W10591575) |
|
Immediately | $ 174.83 | ||||
| 22 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.81 | ||||
| 23 | W10618403 | Housing, Pump (also Order Items 13 & 18) |
|
$ 91.41 | |||||
| 24 | W10467002 | Screw |
|
- | |||||
| 25 | W10789434 | Clamp, Hose (Replaces: W10169167) |
|
Immediately | $ 14.40 | ||||
| 26 | W10803178 | Sprayarm, Lower (Replaces: W10605800) |
|
Immediately | $ 259.40 | ||||
| 27 | W10710432 | Shield, Capacitor |
|
$ 9.41 |
