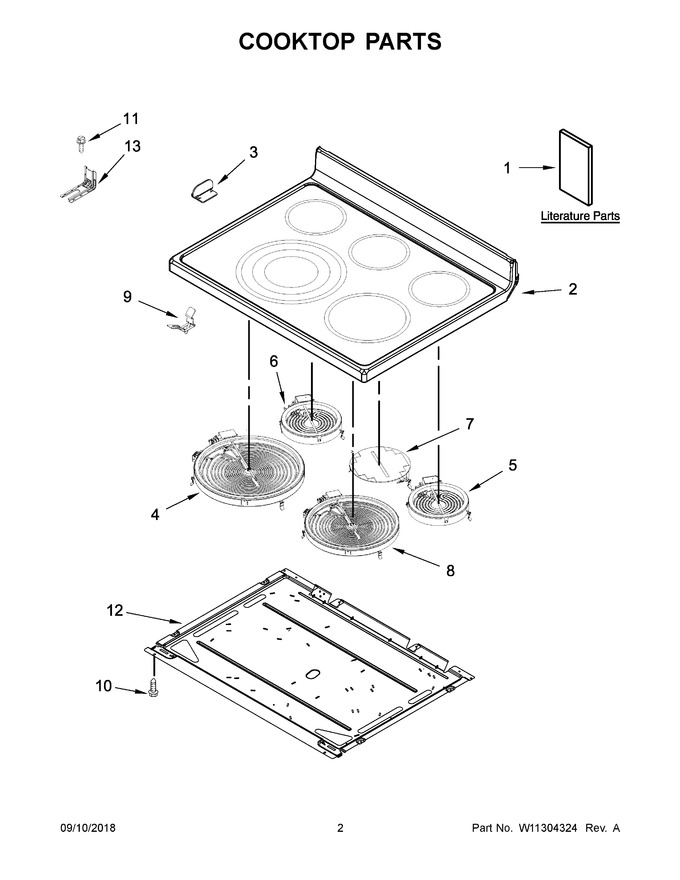

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10841336		Guide, Use & Care (english)		Appelez-nous	-
2	W10872564		Cooktop (white)   (Replaces: W10828425)			Immediately	$ 692.87
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 336.57
5	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
6	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 134.44
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
13	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
1A	W10841337		Guide, Use & Care (french)		Appelez-nous	-
1B	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1C	W10400065		Guide, Quick Start (french)		Appelez-nous	-
1D	W10843071		Sheet, Tech (english)		Appelez-nous	-
1E	W10843072		Sheet, Tech (french)		Appelez-nous	-
1F	W10403812		Instructions, Installation		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11190447		Harness, Cooktop (left)			Immediately	$ 199.79
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 214.26
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	W11212183		Harness, Sensor				$ 235.64
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11212153		Harness, Main				$ 238.99
