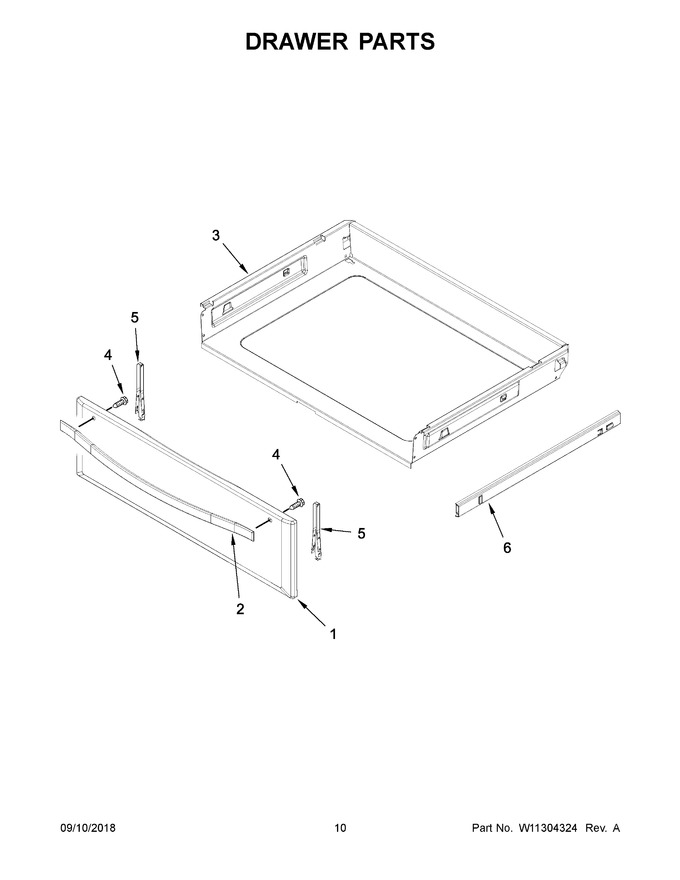

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11307294 | Panel, Drawer Front (white) (Replaces: W11190205) |
|
$ 207.14 | |||||
| 2 | WPW10618239 | Handle, Drawer (stainless) (Replaces: W10254687) |
|
Immediately | $ 175.54 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 4 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 120.16 | |||||
| 6 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 108.20 | ||||
| 6A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 108.13 |
