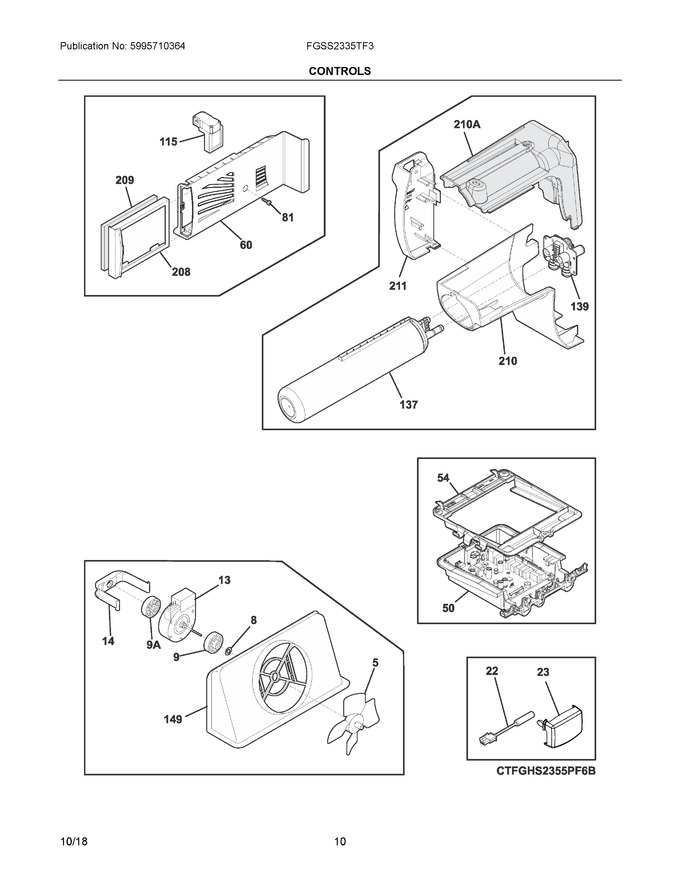

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 54.48 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 20.48 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 19.69 | ||||
| 13 | 242290001 | Motor-blower |
|
$ 173.86 | |||||
| 14 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 8.66 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 23 | 241512901 | Cover-sensor |
|
$ 92.77 | |||||
| 50 | 5304507449 | Board-main Power, Assembly, W/housing |
|
$ 325.26 | |||||
| 54 | 807854301 | Support, Housing, Main Board |
|
$ 45.36 | |||||
| 60 | 242287001 | Housing, Diffuser, & Air Filter |
|
$ 48.83 | |||||
| 81 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 16.01 | |||||
| 115 | 241853801 | Damper Assy, W/seal |
|
$ 174.83 | |||||
| 137 | ULTRAWF | Filter-water (Replaces: 242294401) |
|
Immediately | $ 116.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 36.82 | ||||
| 149 | 242204505 | Shroud, Evap Fan, W/seal |
|
$ 73.31 | |||||
| 208 | 241754301 | Sleeve, Air Filter, Front |
|
$ 42.53 | |||||
| 209 | EAFCBF | Filter, Air (Replaces: 242047804) |
|
Immediately | $ 30.71 | ||||
| 210 | 241983812 | Housing-water Filtr |
|
$ 88.47 | |||||
| 211 | 242286201 | Cover, Water Filter |
|
$ 23.16 | |||||
| 210A | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 16.01 | |||||
| 9A | 241845301 | Bushing-motor Mtg |
|
$ 25.20 | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 5.06 | ||||
| NI | 218990901 | Clip-wire |
|
$ 82.69 | |||||
| NIA | 241945101 | Insulation-air Duct |
|
$ 22.05 | |||||
| NIA | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 17.69 |
