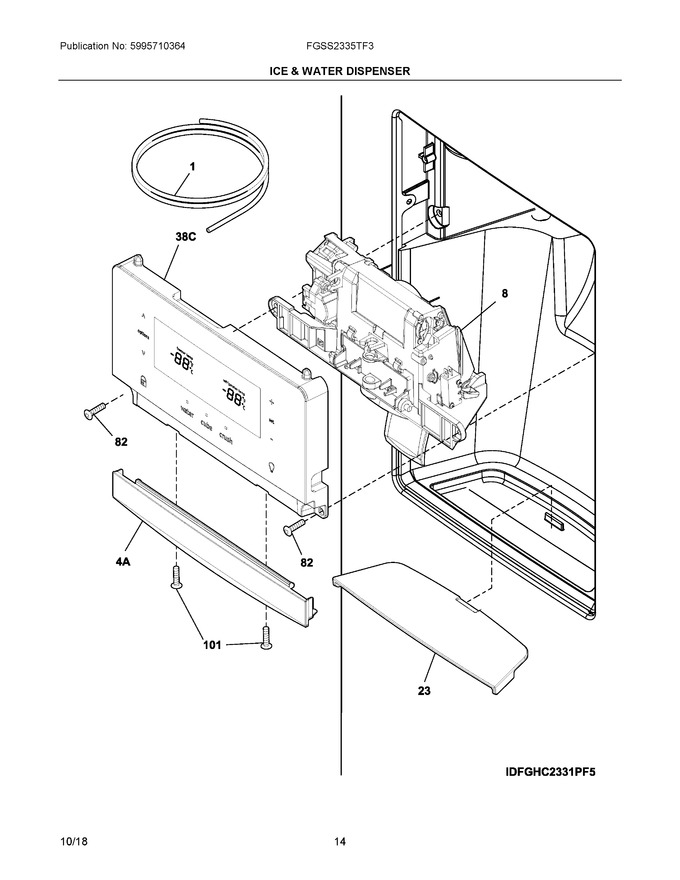

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural 62", Door, Btm Door To Dsp |
|
Immediately | $ 22.84 | ||||
| 8 | 242270107 | Module, Dispenser, Clear, W/paddle (Replaces: 242270101) |
|
$ 232.56 | |||||
| 23 | 242176503 | Sump, Dispenser, Grey |
|
$ 126.79 | |||||
| 82 | 240363403 | Screw, 8-18 X 0.500, 2 |
|
- | |||||
| 101 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 38C | 5304512772 | Control Assembly, User Interface, W/housing |
|
$ 338.74 | |||||
| 4A | 242194301 | Trim, Facade, Stainless |
|
$ 114.77 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 225.82 | |||||
| NI | 5304521766 | Harness, Wiring, Door (Replaces: 807487901) |
|
$ 49.72 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door, Wtr Vlv To Door |
|
$ 21.26 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 38.59 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561703) |
|
Immediately | $ 22.84 | ||||
| NICA | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 19.01 | ||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 51.98 |
