01 - Cover Sheet

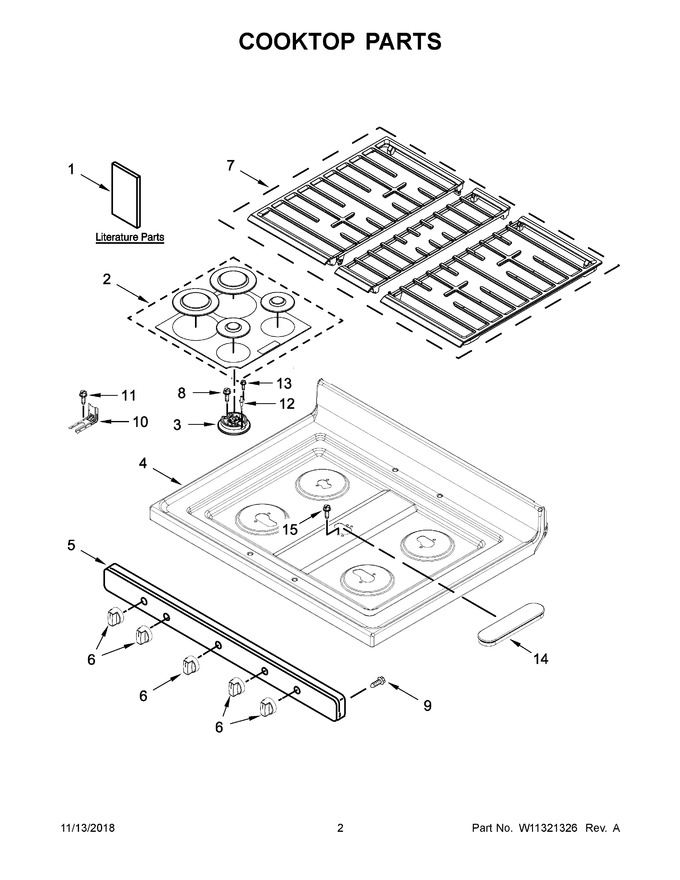

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11122558 | Instructions, Installation |
|
- | |||||
| 2 | W10881749 | Kit, Burner Cap (black (set Of 4)) (Replaces: W10850506) |
|
$ 111.69 | |||||
| 3 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 4 | W10884167 | Cooktop (black) |
|
- | |||||
| 5 | W11159626 | Panel, Manifold (stainless) (Replaces: W11050776) |
|
- | |||||
| 6 | W11159630 | Knob, Control (stainless) (Replaces: W11023139) |
|
Immediately | $ 67.06 | ||||
| 7 | W11252165 | Kit, Grate (black) (Replaces: W11090908) |
|
$ 427.67 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 12 | WPW10515459 | Electrode (left Front, Left Rear, Right Front) (center) (Replaces: W11194809) |
|
Immediately | $ 43.77 | ||||
| 13 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 14 | W11162114 | Spreader, Flame (Replaces: W10298664) |
|
$ 89.90 | |||||
| 15 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 12A | WPW10515459 | Electrode (right Rear) (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 1A | W11102912 | Guide, Use And Care |
|
- | |||||
| 1B | W11102748 | Sheet, Tech (english) |
|
- | |||||
| 1C | W11032799 | Diagram, Wiring |
|
- | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (left Rear & Center) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 160.90 | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | W10842520 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11244557 | Screw (grounding) (Replaces: 3196173) |
|
$ 14.29 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
