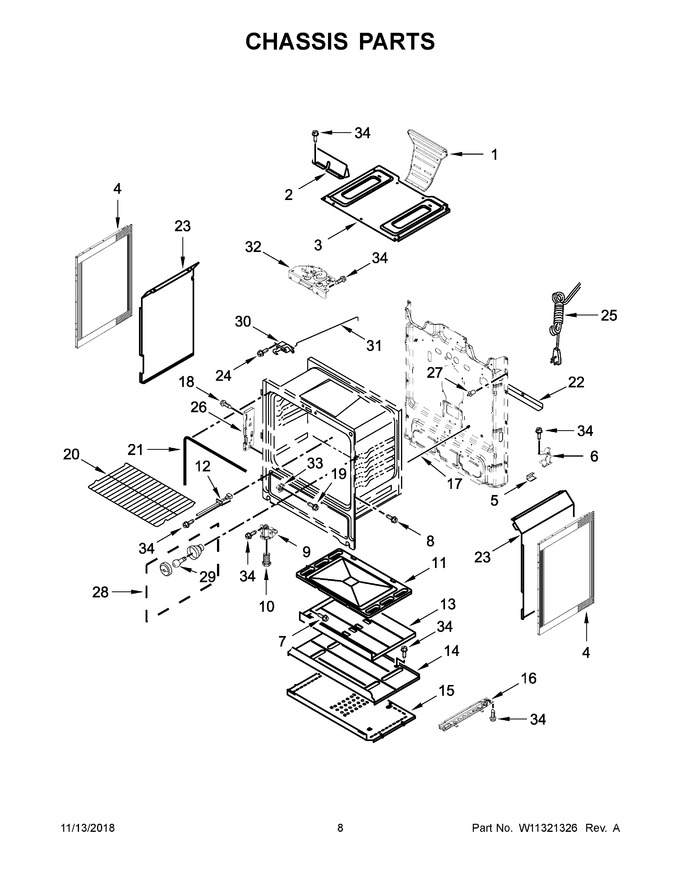

05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Box, Flue (Replaces: W10153186) |
|
$ 157.80 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 74.51 | |||||
| 3 | W11379351 | Box-burner, Gas Sealed (Replaces: 8273036) |
|
$ 64.19 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 6 | 8523249 | Bracket, Manifold |
|
- | |||||
| 7 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 8 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 9 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 231.05 | |||||
| 12 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 13 | 8053967 | Baffle, Burner Oven |
|
$ 315.96 | |||||
| 14 | 8053969 | Shield, Heat |
|
$ 113.04 | |||||
| 15 | 8053968 | Shield, Lower |
|
- | |||||
| 16 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 17 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 19 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 20 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 21 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 50.20 | ||||
| 22 | W10435470 | Brace, Main Back |
|
$ 81.74 | |||||
| 23 | 9761449 | Retainer, Insulation (left) |
|
$ 333.51 | |||||
| 24 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 25 | W11582239 | Cord, Power (Replaces: W10624590) |
|
$ 17.59 | |||||
| 26 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 27 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 144.44 | ||||
| 28 | W11594027 | Assembly, Light (Replaces: W11175594) |
|
Immediately | $ 87.01 | ||||
| 29 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 30 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 256.36 | |||||
| 31 | W10078370 | Rod, Push Latch |
|
$ 95.24 | |||||
| 32 | WPW10107820 | Assembly, Door Latch (rear) (Replaces: W10107820) |
|
$ 309.55 | |||||
| 33 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 34 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 16A | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 23A | 9761448 | Retainer, Insulation (right) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 122.73 | |||||
| NI | W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 123.64 |
